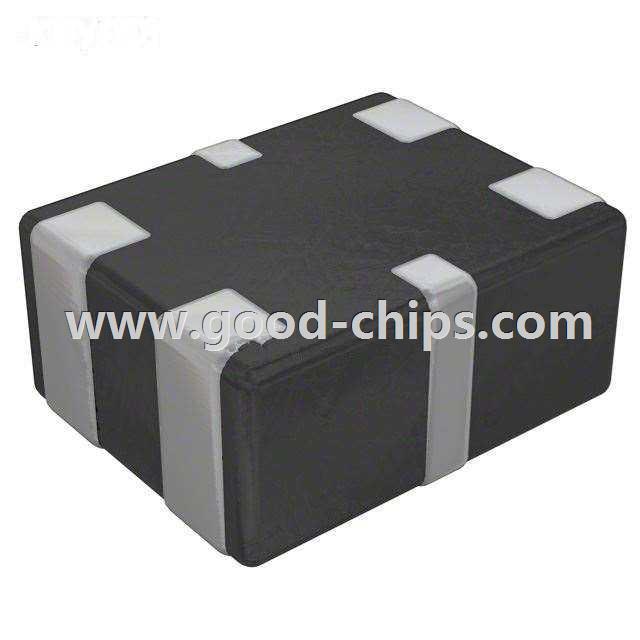

| Manufacturer Part Number: | TCE1210U-120-2P |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2 Line Common Mode Choke Surface Mount 12 Ohm @ 100MHz 100mA DCR 700 mOhm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TCE1210U-120-2P Datasheet |
| Internal Part Number | 898-TCE1210U-120-2P | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | TCE 1210 Series Common-Mode Filters | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | TDK Corporation | |
| Series | TCE | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Filter Type | Signal Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | 12 Ohm @ 100MHz | |
| Inductance @ Frequency | - | |
| Current Rating (Max) | 100mA | |
| DC Resistance (DCR) (Max) | 700 mOhm | |
| Voltage Rating - DC | 10V | |
| Voltage Rating - AC | - | |
| Operating Temperature | -25°C ~ 85°C | |
| Ratings | - | |
| Approvals | - | |
| Features | ESD | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.049" L x 0.039" W (1.25mm x 1.00mm) | |
| Height (Max) | 0.024" (0.60mm) | |
| Package / Case | 0504 (1210 Metric), 6 Lead | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TCE1210U-120-2P | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TCE1210U-120-2P is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of TCE1210U-120-2P is new and unused, you can buy TCE1210U-120-2P TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TCE1210U-120-2P.
