| Manufacturer Part Number: | TCA6507RUER |
|---|---|
| Manufacturer: | Texas Instruments |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 15010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 7 Output Linear I²C, SMBus Dimming 40mA 12-X2QFN (2.0x1.4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TCA6507RUER Datasheet |
| Internal Part Number | 898-TCA6507RUER | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LED Lighting Driver Solutions | |
| Design Resources | Lighting Product Selector | |
| Manufacturer Product Page | TCA6507RUER Specifications | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Linear | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | Texas Instruments | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Linear | |
| Topology | - | |
| Internal Switch(s) | - | |
| Number of Outputs | 7 | |
| Voltage - Supply (Min) | 1.65V | |
| Voltage - Supply (Max) | 3.6V | |
| Voltage - Output | 5.5V | |
| Current - Output / Channel | 40mA | |
| Frequency | 100kHz, 400kHz | |
| Dimming | I²C, SMBus | |
| Applications | - | |
| Operating Temperature | -40°C ~ 125°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 12-XFQFN | |

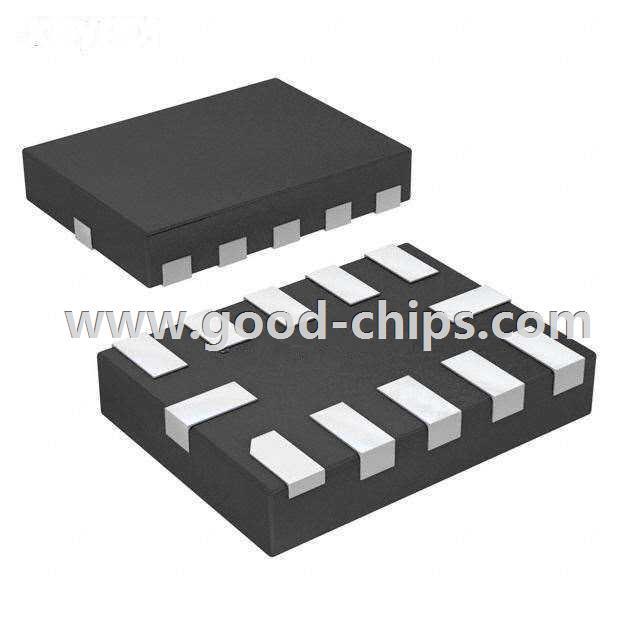

| Supplier Device Package | 12-X2QFN (2.0x1.4) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TCA6507RUER | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TCA6507RUER is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TCA6507RUER is new and unused, you can buy TCA6507RUER Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TCA6507RUER.
