Manufacturer Part Number: | TC7LX1108WBG(EL,AH |
---|---|
Manufacturer: | Toshiba Semiconductor and Storage |
Product Category: | Logic - Translators, Level Shifters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Voltage Level Translator Bidirectional 1 Circuit 8 Channel 200Mbps 24-WCSPC (2.05x2.05) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TC7LX1108WBG(EL,AH Datasheet |
Internal Part Number | 898-TC7LX1108WBG(EL,AH | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | TC7LX | |
Category | Integrated Circuits (ICs) | |
Family | Logic - Translators, Level Shifters | |
Manufacturer | Toshiba Semiconductor and Storage | |
Series | TC7LX | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Translator Type | Voltage Level | |
Channel Type | Bidirectional | |
Number of Circuits | 1 | |
Channels per Circuit | 8 | |
Voltage - VCCA | 1.2 V ~ 3.6 V | |
Voltage - VCCB | 1.2 V ~ 3.6 V | |
Input Signal | - | |
Output Signal | - | |
Output Type | Tri-State, Non-Inverted | |
Data Rate | 200Mbps | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Features | Auto-Direction Sensing | |
Mounting Type | Surface Mount | |

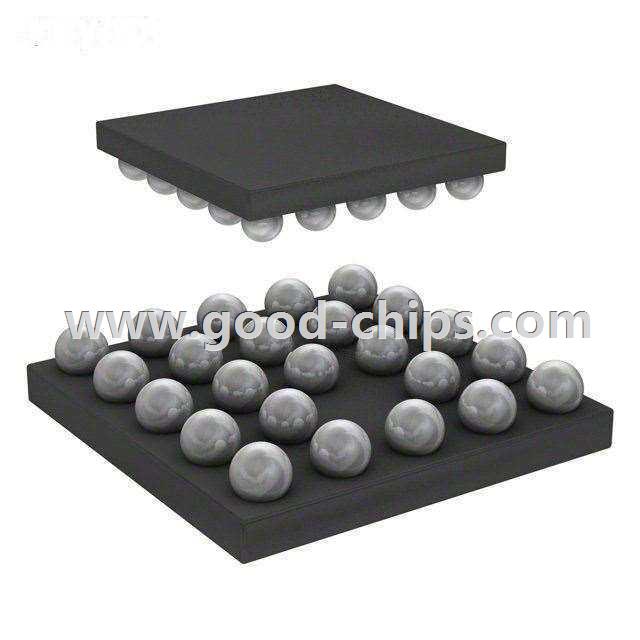

Package / Case | 24-UFBGA, WLCSP | |
Supplier Device Package | 24-WCSPC (2.05x2.05) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TC7LX1108WBG(EL,AH | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TC7LX1108WBG(EL,AH is in stock for immediate shipping now. We are the distributor of Toshiba Semiconductor and Storage all series components. The condition of TC7LX1108WBG(EL,AH is new and unused, you can buy TC7LX1108WBG(EL,AH Toshiba Semiconductor and Storage with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TC7LX1108WBG(EL,AH.
