Manufacturer Part Number: | TC7920K6-G |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Transistors - FETs, MOSFETs - Arrays |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET 2N/2P-CH 200V 12VDFN |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TC7920K6-G Datasheet |
Internal Part Number | 898-TC7920K6-G | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Assembly/Origin | Additional Fabrication Site 03/Sep/2014 Fab Site Addition 14/Aug/2014 | |
PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Arrays | |
Manufacturer | Microchip Technology | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
FET Type | 2 N and 2 P-Channel | |
FET Feature | Standard | |
Drain to Source Voltage (Vdss) | 200V | |
Current - Continuous Drain (Id) @ 25°C | - | |
Rds On (Max) @ Id, Vgs | 10 Ohm @ 1A, 10V | |
Vgs(th) (Max) @ Id | 2.4V @ 1mA | |
Gate Charge (Qg) @ Vgs | - | |
Input Capacitance (Ciss) @ Vds | 52pF @ 25V | |
Power - Max | - | |
Operating Temperature | -55°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

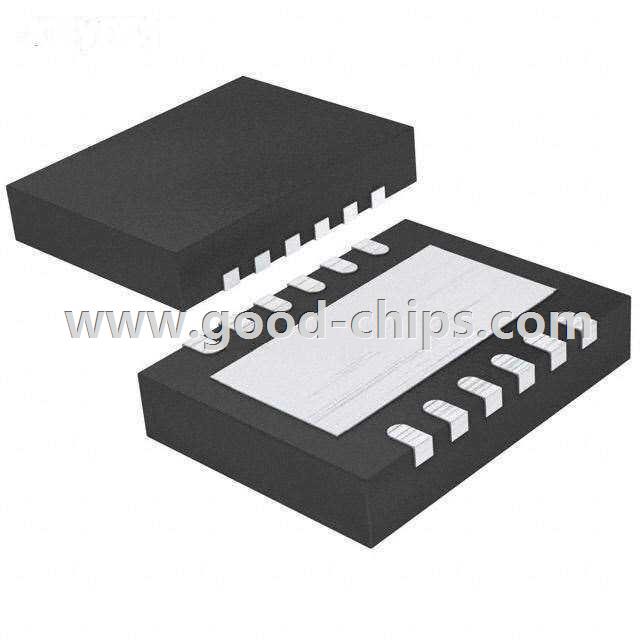

Package / Case | 12-VFDFN Exposed Pad | |
Supplier Device Package | 12-DFN (4x4) | |
Standard Package | 3,300 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TC7920K6-G | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TC7920K6-G is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of TC7920K6-G is new and unused, you can buy TC7920K6-G Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TC7920K6-G.
