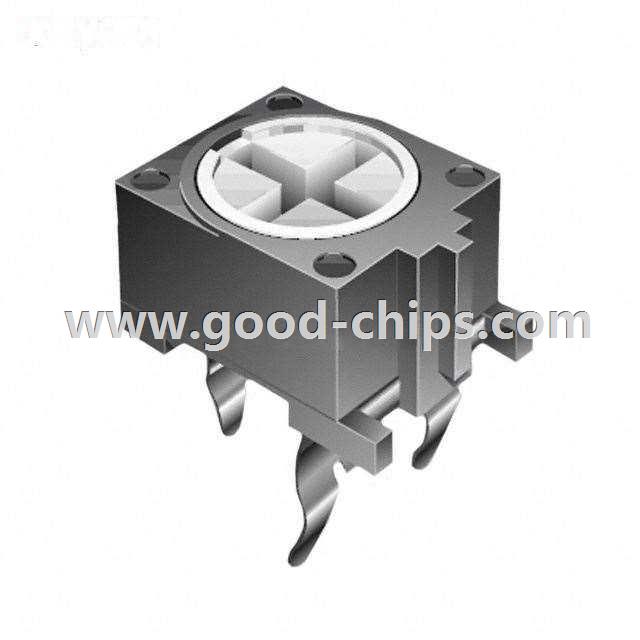

TC76B-1-101

TC76B-1-101
Manufacturer Part Number:TC76B-1-101
Manufacturer:
Product Category:Trimmer Potentiometers
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:100 Ohm 0.1W, 1/10W PC Pins Through Hole Trimmer Potentiometer Carbon 1 Turn Side Adjustment
Lead Free Status / RoHS Status:Contains lead / RoHS non-compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: TC76B-1-101 Datasheet
TC76B-1-101´s Parameters
Internal Part Number898-TC76B-1-101
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryPotentiometers, Variable Resistors
FamilyTrimmer Potentiometers
ManufacturerBourns Inc.
SeriesTrimpot® TC76 - Closed Frame
PackagingBulk
Part StatusObsolete
Resistance (Ohms)100
Power (Watts)0.1W, 1/10W
Tolerance±30%
Temperature Coefficient±300ppm/°C
Number of Turns1
Adjustment TypeSide Adjustment
Resistive MaterialCarbon
Mounting TypeThrough Hole
Termination StylePC Pins
Size / DimensionRectangular - 0.252" x 0.342" Face x 0.342" H (6.40mm x 8.70mm x 8.70mm)
Standard Package 500
Weight0.001 KG
ApplicationEmail for details
Replacement PartTC76B-1-101
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

TC76B-1-101 is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of TC76B-1-101 is new and unused, you can buy TC76B-1-101 Bourns Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for TC76B-1-101.
