| Manufacturer Part Number: | TC7662AMJA |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | PMIC - Voltage Regulators - DC DC Switching Regulators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Charge Pump Switching Regulator IC Positive or Negative Fixed -Vin, 2Vin 1 Output 40mA 8-CDIP (0.300", 7.62mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TC7662AMJA Datasheet |
| Internal Part Number | 898-TC7662AMJA | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Qualification Epoxy Die 09/Sep/2014 | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - DC DC Switching Regulators | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Function | Ratiometric | |
| Output Configuration | Positive or Negative | |
| Topology | Charge Pump | |
| Output Type | Fixed | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 3V | |
| Voltage - Input (Max) | 18V | |
| Voltage - Output (Min/Fixed) | -Vin, 2Vin | |
| Voltage - Output (Max) | - | |
| Current - Output | 40mA | |
| Frequency - Switching | 12kHz | |
| Synchronous Rectifier | No | |
| Operating Temperature | -55°C ~ 125°C (TA) | |
| Mounting Type | Through Hole | |

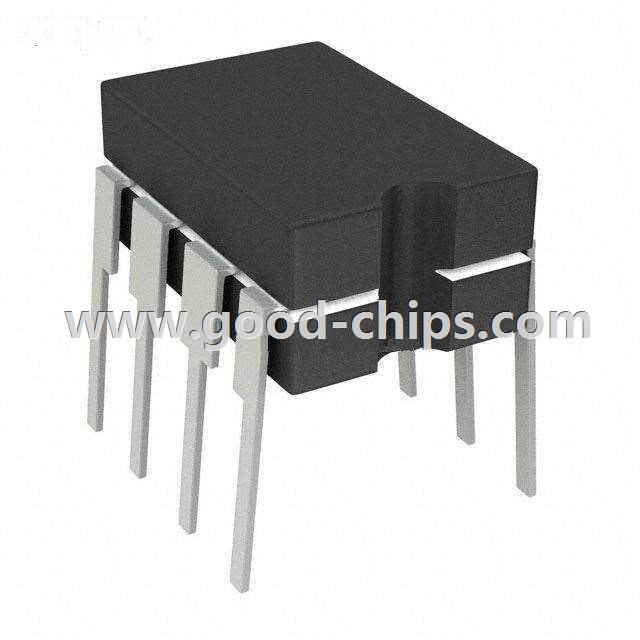

| Package / Case | 8-CDIP (0.300", 7.62mm) | |
| Supplier Device Package | 8-CERDIP | |
| Standard Package | 56 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TC7662AMJA | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TC7662AMJA is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of TC7662AMJA is new and unused, you can buy TC7662AMJA Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TC7662AMJA.
