Manufacturer Part Number: | TC4S11FT5LFT |
---|---|
Manufacturer: | Toshiba Semiconductor and Storage |
Product Category: | Logic - Gates and Inverters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | NAND Gate IC 1 Channel SMV |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TC4S11FT5LFT Datasheet |
Internal Part Number | 898-TC4S11FT5LFT | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Integrated Circuits (ICs) | |
Family | Logic - Gates and Inverters | |
Manufacturer | Toshiba Semiconductor and Storage | |
Series | TC4S | |
Packaging | Digi-Reel® | |
Part Status | Obsolete | |
Logic Type | NAND Gate | |
Number of Circuits | 1 | |
Number of Inputs | 2 | |
Features | - | |
Voltage - Supply | 3 V ~ 18 V | |
Current - Quiescent (Max) | 1µA | |
Current - Output High, Low | 3.4mA, 3.4mA | |
Logic Level - Low | 1.5 V ~ 4 V | |
Logic Level - High | 3.5 V ~ 11 V | |
Max Propagation Delay @ V, Max CL | 80ns @ 15V, 50pF | |
Operating Temperature | -40°C ~ 85°C | |
Mounting Type | Surface Mount | |
Supplier Device Package | SMV | |

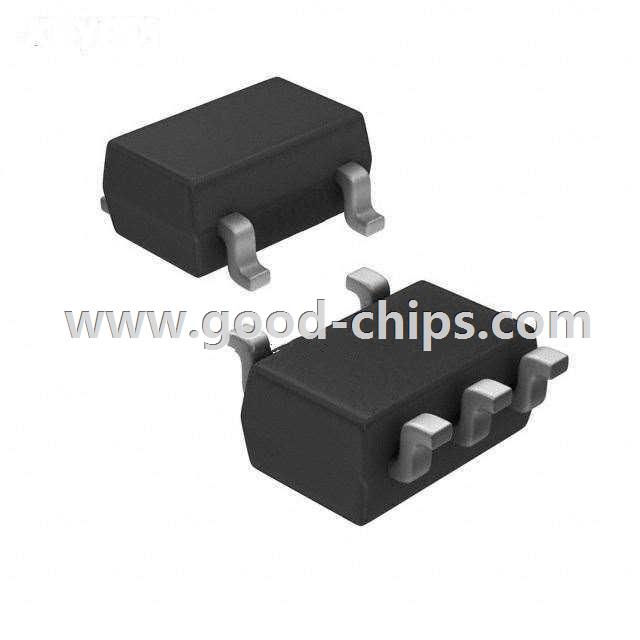

Package / Case | SC-74A, SOT-753 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TC4S11FT5LFT | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TC4S11FT5LFT is in stock for immediate shipping now. We are the distributor of Toshiba Semiconductor and Storage all series components. The condition of TC4S11FT5LFT is new and unused, you can buy TC4S11FT5LFT Toshiba Semiconductor and Storage with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TC4S11FT5LFT.
