| Manufacturer Part Number: | TBF-2012-245-R1 |
|---|---|
| Manufacturer: | Susumu |
| Product Category: | EMI/RFI Filters (LC, RC Networks) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

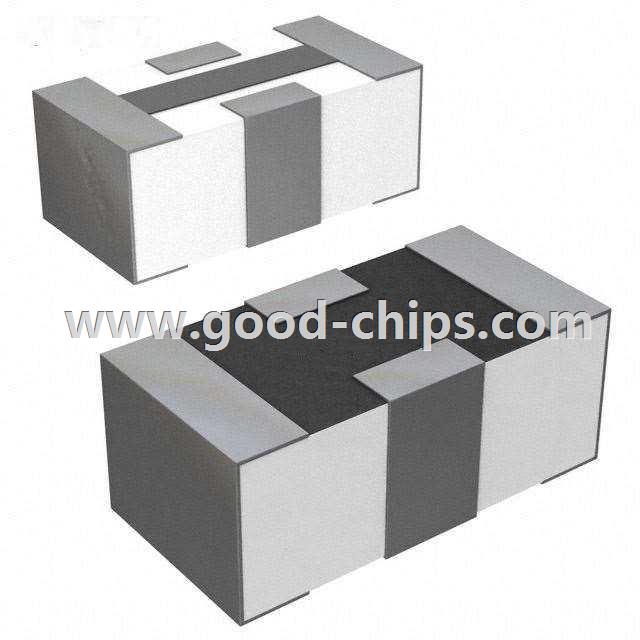

| Description: | Thin Film EMI Filter Band Pass 1 Channel 0805 (2012 Metric), 3 PC Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | TBF-2012-245-R1 Datasheet |
| Internal Part Number | 898-TBF-2012-245-R1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Filters | |
| Family | EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | Susumu | |
| Series | TBF | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Band Pass | |
| Filter Order | - | |
| Technology | Thin Film | |
| Number of Channels | 1 | |
| Center / Cutoff Frequency | 2.45GHz (Center) | |
| Attenuation Value | 25dB @ 1.71 ~ 1.91GHz, 30dB @ 880 ~ 960MHz | |
| Resistance - Channel (Ohms) | - | |
| Current | - | |
| Values | - | |
| ESD Protection | No | |
| Operating Temperature | -40°C ~ 85°C | |
| Applications | Bluetooth, GPS, WLAN | |
| Voltage - Rated | - | |
| Mounting Type | Surface Mount | |
| Package / Case | 0805 (2012 Metric), 3 PC Pad | |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | |
| Height | 0.020" (0.50mm) | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | TBF-2012-245-R1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
TBF-2012-245-R1 is in stock for immediate shipping now. We are the distributor of Susumu all series components. The condition of TBF-2012-245-R1 is new and unused, you can buy TBF-2012-245-R1 Susumu with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TBF-2012-245-R1.
