Manufacturer Part Number: | TB67S141FTG,EL |
---|---|
Manufacturer: | Toshiba Semiconductor and Storage |
Product Category: | PMIC - Motor Drivers, Controllers |
Available Quantity: | 13010 Pieces |
Unit Price: | Quote by Email |
Description: | Unipolar Motor Driver Power MOSFET Parallel 48-WQFN (7x7) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TB67S141FTG,EL Datasheet |
Internal Part Number | 898-TB67S141FTG,EL | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Drivers | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Motor Drivers, Controllers | |
Manufacturer | Toshiba Semiconductor and Storage | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Motor Type - Stepper | Unipolar | |
Motor Type - AC, DC | - | |
Function | Driver - Fully Integrated, Control and Power Stage | |
Output Configuration | Half Bridge (2) | |
Interface | Parallel | |
Technology | Power MOSFET | |
Step Resolution | 1 ~ 1/32 | |
Applications | General Purpose | |
Current - Output | 3A | |
Voltage - Supply | 4.75 V ~ 5.25 V | |
Voltage - Load | 10 V ~ 40 V | |
Operating Temperature | -20°C ~ 150°C (TJ) | |
Mounting Type | Surface Mount | |

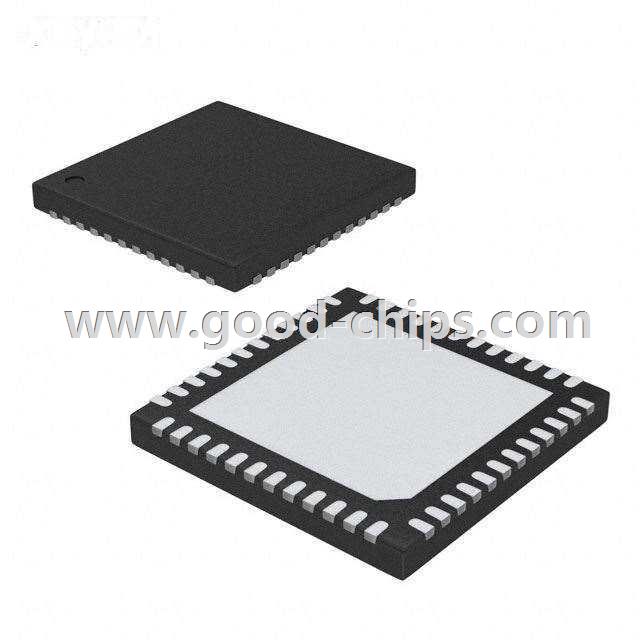

Package / Case | 48-WFQFN Exposed Pad | |
Supplier Device Package | 48-WQFN (7x7) | |
Standard Package | 4,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TB67S141FTG,EL | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TB67S141FTG,EL is in stock for immediate shipping now. We are the distributor of Toshiba Semiconductor and Storage all series components. The condition of TB67S141FTG,EL is new and unused, you can buy TB67S141FTG,EL Toshiba Semiconductor and Storage with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TB67S141FTG,EL.
