Manufacturer Part Number: | TAS5424ATDKDMQ1 |
---|---|
Manufacturer: | Texas Instruments |
Product Category: | Linear - Amplifiers - Audio |
Available Quantity: | 9408 Pieces |
Unit Price: | Quote by Email |
Description: | Amplifier IC 4-Channel (Quad) Class D 44-HSSOP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | TAS5424ATDKDMQ1 Datasheet |
Internal Part Number | 898-TAS5424ATDKDMQ1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Reference Design Library | TAS5424AEVM3: 28Wx4@4O (14.4V), 116Wx2@2O(21V) | |
Online Catalog | Class D Amplifier | |
Category | Integrated Circuits (ICs) | |
Family | Linear - Amplifiers - Audio | |
Manufacturer | Texas Instruments | |
Series | Automotive, AEC-Q100 | |
Packaging | Tube | |
Part Status | Active | |
Type | Class D | |
Output Type | 4-Channel (Quad) | |
Max Output Power x Channels @ Load | 116W x 2 @ 2 Ohm, 58W x 4 @ 4 Ohm | |
Voltage - Supply | 8 V ~ 22 V | |
Features | Depop, Differential Inputs, I²C, Mute, Short-Circuit and Thermal Protection, Shutdown | |
Mounting Type | Surface Mount | |
Operating Temperature | -40°C ~ 105°C (TA) | |

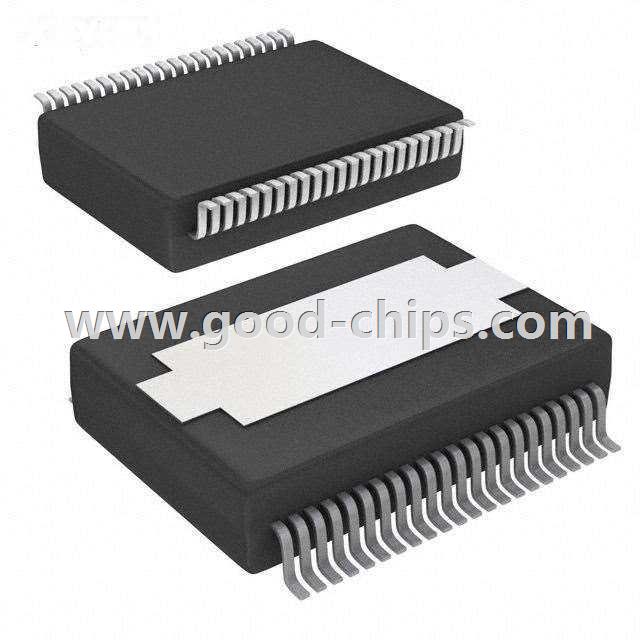

Supplier Device Package | 44-HSSOP | |
Package / Case | 44-BSSOP (0.433", 11.00mm Width) Exposed Pad | |
Standard Package | 29 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | TAS5424ATDKDMQ1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
TAS5424ATDKDMQ1 is in stock for immediate shipping now. We are the distributor of Texas Instruments all series components. The condition of TAS5424ATDKDMQ1 is new and unused, you can buy TAS5424ATDKDMQ1 Texas Instruments with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for TAS5424ATDKDMQ1.
