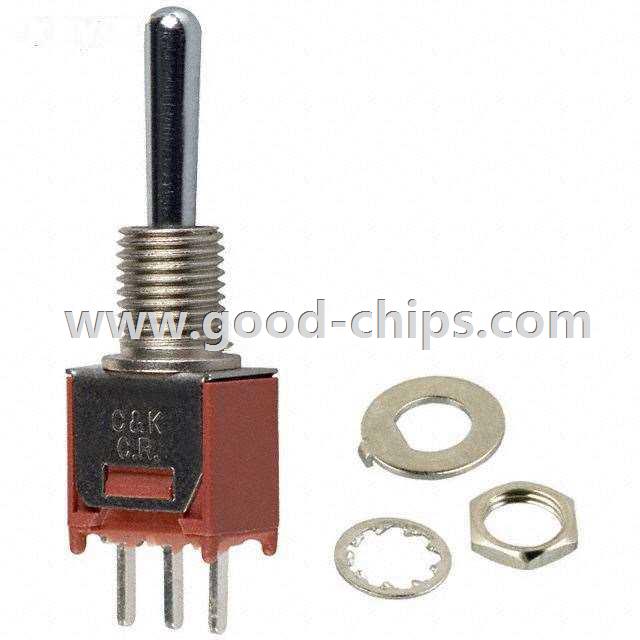

| Manufacturer Part Number: | T103SHCQE |
|---|---|
| Manufacturer: | C&K Components |
| Product Category: | Toggle Switches |
| Available Quantity: | 9409 Pieces |
| Unit Price: | Quote by Email |
| Description: | Toggle Switch SPDT Panel Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | T103SHCQE Datasheet |
| Internal Part Number | 898-T103SHCQE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Introduction to Electromechanical Switches | |
| 3D Model | T10xSHCQE.stp T10xSHCQE.pdf | |
| PCN Design/Specification | TP, T, TS Material 01/Jul/2009 | |
| PCN Assembly/Origin | Series Transfer 26/Nov/2012 | |
| Online Catalog | T Series | |
| Category | Switches | |
| Family | Toggle Switches | |
| Manufacturer | C&K Components | |
| Series | T | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-Off-On | |
| Current Rating | 2A (AC/DC) | |
| Voltage Rating - AC | 120V | |
| Voltage Rating - DC | 28V | |
| Actuator Type | Standard Round | |
| Actuator Length | 9.40mm | |
| Illumination | Non-Illuminated | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount | |
| Termination Style | PC Pin | |
| Panel Cutout Dimensions | Circular - 4.95mm Dia | |
| Bushing Thread | 10-48 | |
| Ingress Protection | - | |
| Features | Epoxy Sealed Terminals | |
| Actuator Material | Brass, Chrome Plated | |
| Electrical Life | 30,000 Cycles | |
| Operating Temperature | -30°C ~ 85°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | T103SHCQE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
T103SHCQE is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of T103SHCQE is new and unused, you can buy T103SHCQE C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for T103SHCQE.
