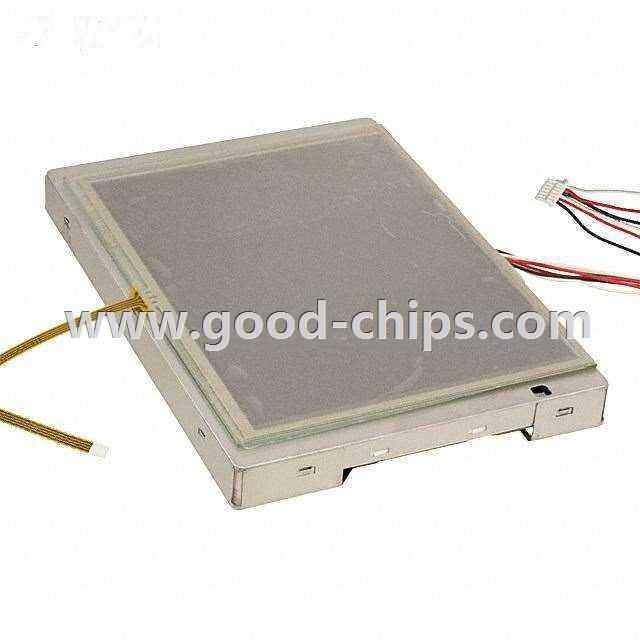

Manufacturer Part Number: | T-55265GD057J-LW-ADN |
---|---|
Manufacturer: | Kyocera International, Inc. |
Product Category: | Display Modules - LCD, OLED, Graphic |
Available Quantity: | 9011 Pieces |
Unit Price: | Quote by Email |
Description: | Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color Parallel, 18-Bit (RGB) 5.7" (144.78mm) 320 x 240 (QVGA) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | T-55265GD057J-LW-ADN Datasheet |
Internal Part Number | 898-T-55265GD057J-LW-ADN | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Assembly/Origin | T-55265GD057J-LW-ADN Factory Change 20/Aug/2013 Assembly Site Transfer 09/Feb/2015 | |
PCN Other | Multiple Changes 16/Apr/2015 | |
Online Catalog | TFT LCD Displays | |
Category | Optoelectronics | |
Family | Display Modules - LCD, OLED, Graphic | |
Manufacturer | Kyocera International, Inc. | |
Series | - | |
Part Status | Active | |
Display Type | TFT - Color | |
Display Mode | Transmissive | |
Touchscreen | - | |
Diagonal Screen Size | 5.7" (144.78mm) | |
Viewing Area | 117.88mm W x 88.24mm H | |
Backlight | LED - White | |
Dot Pixels | 320 x 240 (QVGA) | |
Interface | Parallel, 18-Bit (RGB) | |
Graphics Color | Red, Green, Blue (RGB) | |
Background Color | - | |
Dot Size | 0.36mm W x 0.36mm H | |
Dot Pitch | - | |
Standard Package | 20 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | T-55265GD057J-LW-ADN | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
T-55265GD057J-LW-ADN is in stock for immediate shipping now. We are the distributor of Kyocera International, Inc. all series components. The condition of T-55265GD057J-LW-ADN is new and unused, you can buy T-55265GD057J-LW-ADN Kyocera International, Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for T-55265GD057J-LW-ADN.
