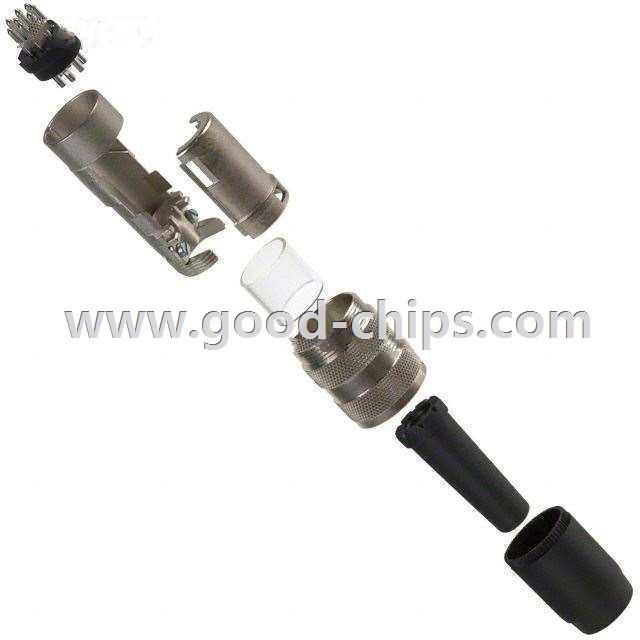

| Manufacturer Part Number: | T 3504 001 |
|---|---|
| Manufacturer: | Amphenol Sine Systems Corp |
| Product Category: | Circular Connectors |
| Available Quantity: | 9846 Pieces |
| Unit Price: | Quote by Email |
| Description: | 8 Position Circular Connector Plug, Male Pins Solder Cup Silver |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | T 3504 001 Datasheet |
| Internal Part Number | 898-T 3504 001 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | C091A,B Series Design 19/Jan/2009 | |
| Online Catalog | C 091 A Series | |
| Category | Connectors, Interconnects | |
| Family | Circular Connectors | |
| Manufacturer | Amphenol Sine Systems Corp | |
| Series | C 091 A | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 8 | |
| Shell Size - Insert | DIN (270 Degree) | |
| Shell Size, MIL | - | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Solder Cup | |
| Fastening Type | Threaded | |
| Orientation | Keyed | |
| Ingress Protection | IP40 | |
| Shell Material, Finish | Die Cast, Nickel Plated | |
| Contact Finish | Silver | |
| Features | Shielded, Strain Relief | |
| Contact Finish Thickness | - | |
| Current Rating | 5A | |
| Voltage - Rated | 100V | |
| Operating Temperature | -40°C ~ 100°C | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | T 3504 001 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
T 3504 001 is in stock for immediate shipping now. We are the distributor of Amphenol Sine Systems Corp all series components. The condition of T 3504 001 is new and unused, you can buy T 3504 001 Amphenol Sine Systems Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for T 3504 001.
