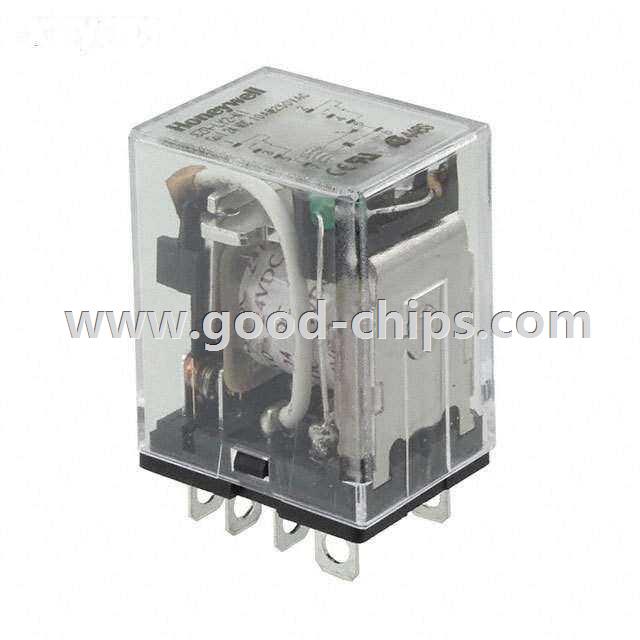

| Manufacturer Part Number: | SZR-LY2-N1-DC24V |
|---|---|
| Manufacturer: | Honeywell Sensing and Productivity Solutions |
| Product Category: | Power Relays, Over 2 Amps |
| Available Quantity: | 9036 Pieces |
| Unit Price: | Quote by Email |
| Description: | General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SZR-LY2-N1-DC24V Datasheet |
| Internal Part Number | 898-SZR-LY2-N1-DC24V | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | SZR-LY Series | |
| Category | Relays | |
| Family | Power Relays, Over 2 Amps | |
| Manufacturer | Honeywell Sensing and Productivity Solutions | |
| Series | SZR-LY | |
| Packaging | Bulk | |
| Part Status | Active | |
| Relay Type | General Purpose | |
| Coil Type | Non Latching | |
| Coil Current | 40.9mA | |
| Coil Voltage | 24VDC | |
| Contact Form | DPDT (2 Form C) | |
| Contact Rating (Current) | 10A | |
| Switching Voltage | 250VAC, 125VDC - Max | |
| Turn On Voltage (Max) | 19.2 VDC | |
| Turn Off Voltage (Min) | 2.4 VDC | |
| Operate Time | 25ms | |
| Release Time | 25ms | |
| Features | LED Indicator | |
| Mounting Type | Socketable | |
| Termination Style | Plug In | |
| Contact Material | Silver Cadmium Oxide (AgCdO) | |
| Coil Power | 900 mW | |
| Coil Resistance | 650 Ohms | |
| Operating Temperature | - | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SZR-LY2-N1-DC24V | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SZR-LY2-N1-DC24V is in stock for immediate shipping now. We are the distributor of Honeywell Sensing and Productivity Solutions all series components. The condition of SZR-LY2-N1-DC24V is new and unused, you can buy SZR-LY2-N1-DC24V Honeywell Sensing and Productivity Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SZR-LY2-N1-DC24V.
