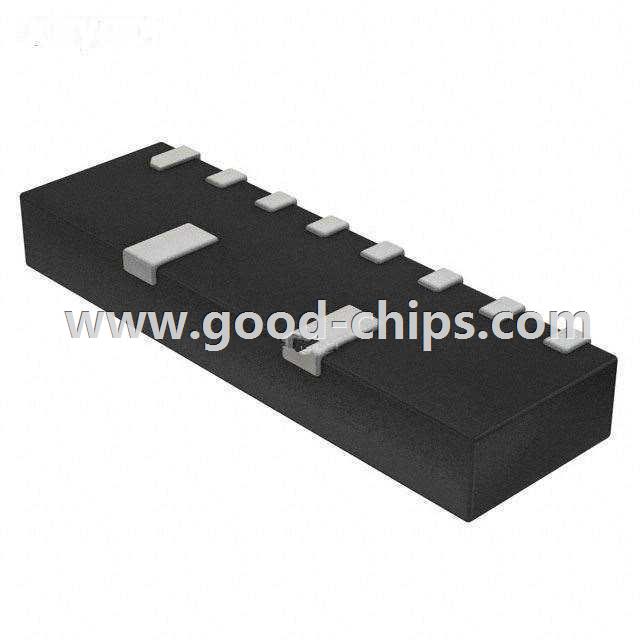

.jpg)
| Manufacturer Part Number: | SZESD7016MUTAG |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | TVS - Diodes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | TVS DIODE 5VWM 10VC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SZESD7016MUTAG Datasheet |
| Internal Part Number | 898-SZESD7016MUTAG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Circuit Protection | |
| Family | TVS - Diodes | |
| Manufacturer | ON Semiconductor | |
| Series | Automotive, AEC-Q101 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Zener | |
| Unidirectional Channels | 8 | |
| Bidirectional Channels | - | |
| Voltage - Reverse Standoff (Typ) | 5V (Max) | |
| Voltage - Breakdown (Min) | 5.5V | |
| Voltage - Clamping (Max) @ Ipp | 10V | |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) | |
| Power - Peak Pulse | - | |
| Power Line Protection | No | |
| Applications | Automotive | |
| Capacitance @ Frequency | 0.15pF @ 1MHz | |
| Operating Temperature | -55°C ~ 125°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-UFDFN | |
| Supplier Device Package | 8-UDFN (3.3x1.0) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SZESD7016MUTAG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SZESD7016MUTAG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of SZESD7016MUTAG is new and unused, you can buy SZESD7016MUTAG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SZESD7016MUTAG.
