| Manufacturer Part Number: | SZEMI2121MTTAG |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 4 Line Common Mode Choke Surface Mount 100mA DCR 8 Ohm (Typ) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SZEMI2121MTTAG Datasheet |
| Internal Part Number | 898-SZEMI2121MTTAG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | ON Semiconductor | |
| Series | EMI21 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Filter Type | Signal Line | |
| Number of Lines | 4 | |
| Impedance @ Frequency | - | |
| Inductance @ Frequency | - | |
| Current Rating (Max) | 100mA | |
| DC Resistance (DCR) (Max) | 8 Ohm (Typ) | |
| Voltage Rating - DC | - | |
| Voltage Rating - AC | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Ratings | AEC-Q101 | |
| Approvals | - | |
| Features | ESD | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.087" L x 0.079" W (2.20mm x 2.00mm) | |
| Height (Max) | 0.032" (0.80mm) | |

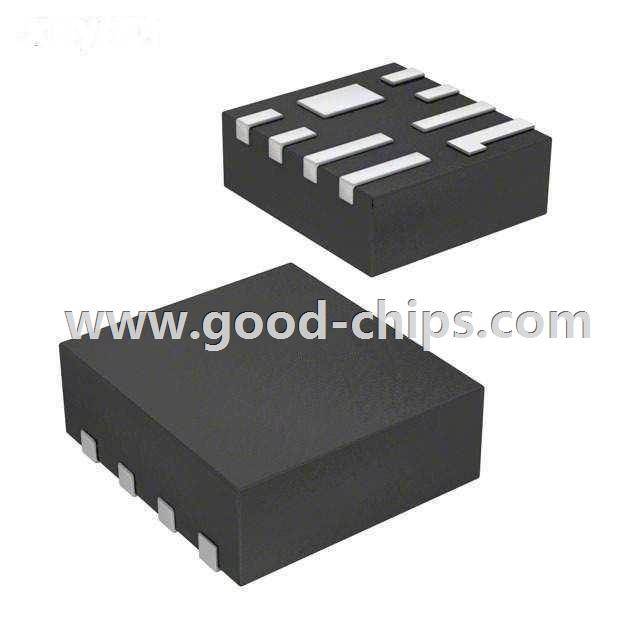

| Package / Case | 8-WFDFN | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SZEMI2121MTTAG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SZEMI2121MTTAG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of SZEMI2121MTTAG is new and unused, you can buy SZEMI2121MTTAG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SZEMI2121MTTAG.
