| Manufacturer Part Number: | SY55856UHG-TR |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Clock/Timing - Delay Lines |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Delay Line IC Multiple, NonProgrammable 7 Tap 350ps 32-TQFP Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SY55856UHG-TR Datasheet |
| Internal Part Number | 898-SY55856UHG-TR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Micrel Devices EOL 20/Nov/2015 | |
| PCN Assembly/Origin | Wafer Size Update 02/Sep/2015 | |
| PCN Part Number | Micrel to Microchip PN Changes 7/Oct/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | Clock/Timing - Delay Lines | |
| Manufacturer | Microchip Technology | |
| Series | SuperLite™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Number of Taps/Steps | 7 | |
| Function | Multiple, NonProgrammable | |
| Delay to 1st Tap | 50ps | |
| Tap Increment | 50ps | |
| Available Total Delays | 350ps | |
| Number of Independent Delays | 2 | |
| Voltage - Supply | 2.3 V ~ 3.6 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

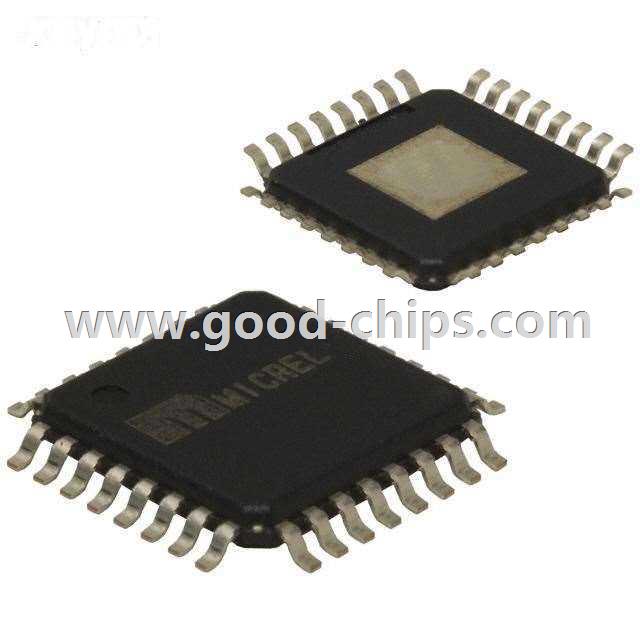

| Package / Case | 32-TQFP Exposed Pad | |
| Supplier Device Package | 32-TQFP-EP (7x7) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SY55856UHG-TR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SY55856UHG-TR is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of SY55856UHG-TR is new and unused, you can buy SY55856UHG-TR Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SY55856UHG-TR.
