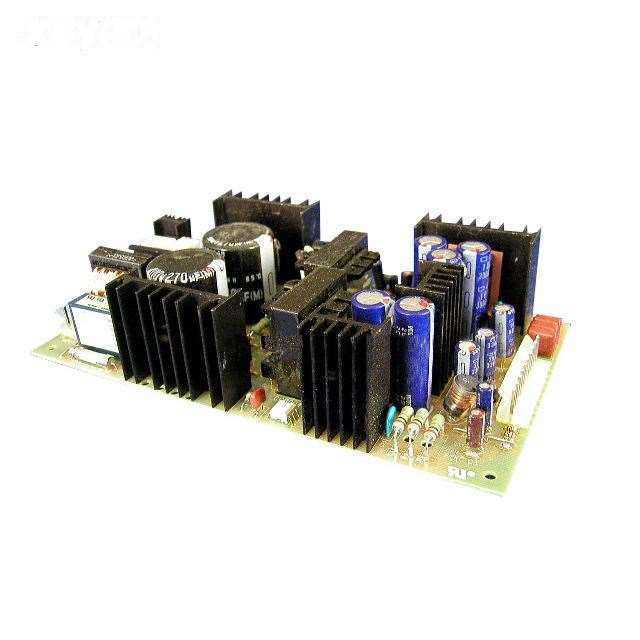

| Manufacturer Part Number: | SWT100-522 |
|---|---|
| Manufacturer: | TDK-Lambda Americas Inc. |
| Product Category: | AC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 5V +/-12V 100W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SWT100-522 Datasheet |
| Internal Part Number | 898-SWT100-522 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | TDK-Lambda Americas Inc. | |
| Series | SWT | |
| Part Status | Active | |
| Type | Open Frame | |
| Number of Outputs | 3 | |
| Voltage - Input | 85 ~ 265 VAC | |
| Voltage - Output 1 | 5V | |
| Voltage - Output 2 | 12V | |
| Voltage - Output 3 | -12V | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 8A, 4A, 800mA | |
| Power (Watts) | 100W | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | 3kV (3000V) | |
| Efficiency | 74% | |
| Operating Temperature | 0°C ~ 50°C | |
| Features | DC Input Capable, Universal Input | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 7.75" L x 4.25" W x 1.77" H (196.9mm x 108.0mm x 45.0mm) | |
| Minimum Load Required | Yes | |
| Approvals | CE, cUR, UR | |
| Power (Watts) - Max | 100W | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SWT100-522 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SWT100-522 is in stock for immediate shipping now. We are the distributor of TDK-Lambda Americas Inc. all series components. The condition of SWT100-522 is new and unused, you can buy SWT100-522 TDK-Lambda Americas Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SWT100-522.
