Manufacturer Part Number: | SWT-1.48-26 |
---|---|
Manufacturer: | Amgis, LLC |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

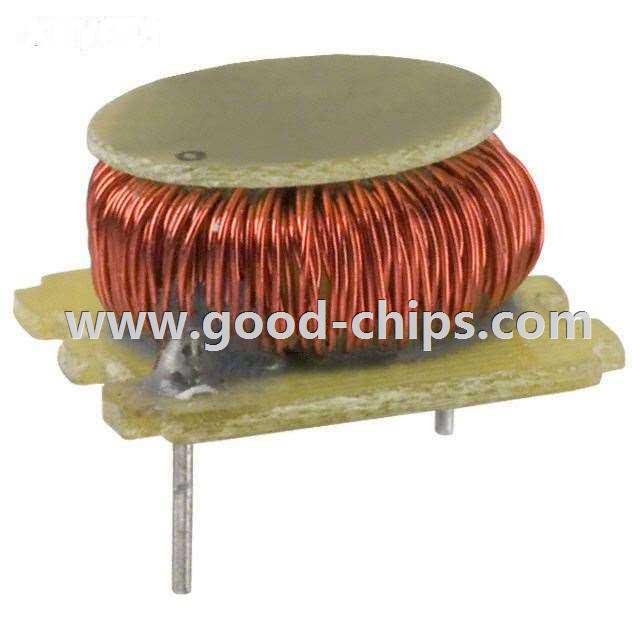

Description: | 26µH Unshielded Toroidal Inductor 1.48A 100 mOhm Radial |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SWT-1.48-26 Datasheet |
Internal Part Number | 898-SWT-1.48-26 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Amgis, LLC | |
Series | SW | |
Packaging | Bulk | |
Part Status | Active | |
Type | Toroidal | |
Material - Core | Powdered Iron | |
Inductance | 26µH | |
Tolerance | ±20% | |
Current Rating | 1.48A | |
Current - Saturation | - | |
Shielding | Unshielded | |
DC Resistance (DCR) | 100 mOhm | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -40°C ~ 125°C | |
Frequency - Test | 10kHz | |
Mounting Type | Through Hole | |
Package / Case | Radial | |
Size / Dimension | 0.504" L x 0.504" W (12.80mm x 12.80mm) | |
Height - Seated (Max) | 0.307" (7.80mm) | |
Standard Package | 200 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SWT-1.48-26 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SWT-1.48-26 is in stock for immediate shipping now. We are the distributor of Amgis, LLC all series components. The condition of SWT-1.48-26 is new and unused, you can buy SWT-1.48-26 Amgis, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SWT-1.48-26.
