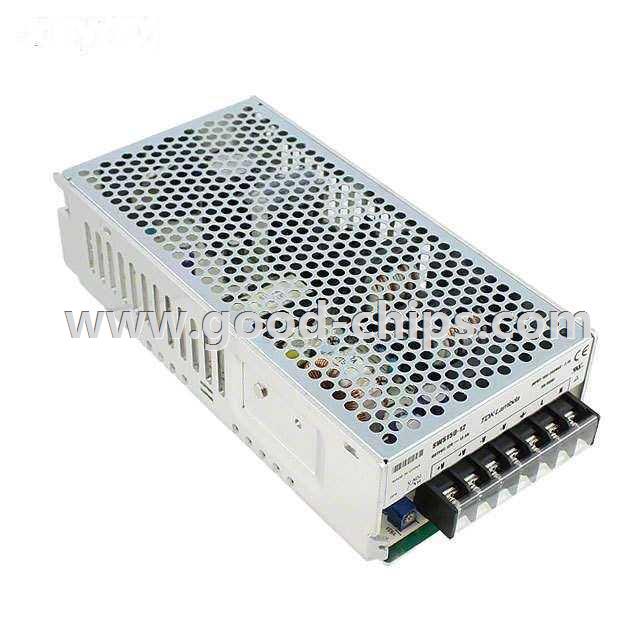

| Manufacturer Part Number: | SWS1505 |
|---|---|
| Manufacturer: | TDK-Lambda Americas Inc. |
| Product Category: | AC DC Converters |
| Available Quantity: | 9093 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 5V 150W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SWS1505 Datasheet |
| Internal Part Number | 898-SWS1505 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | SWS150.igs | |
| PCN Obsolescence/ EOL | SWS50-600, SWS300A, PH-S, PH-F 01/Oct/2015 | |
| Online Catalog | SWS150 Series | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | TDK-Lambda Americas Inc. | |
| Series | SWS | |
| Part Status | Last Time Buy | |
| Type | Enclosed | |
| Number of Outputs | 1 | |
| Voltage - Input | 85 ~ 265 VAC | |
| Voltage - Output 1 | 5V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 30A | |
| Power (Watts) | 150W | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | 3kV (3000V) | |
| Efficiency | 76% | |
| Operating Temperature | -20°C ~ 74°C (With Derating) | |
| Features | Adjustable Output, PFC, Universal Input | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 7.80" L x 3.90" W x 2.00" H (198.1mm x 99.1mm x 50.8mm) | |
| Minimum Load Required | - | |
| Approvals | CE, cURus, TUV | |
| Power (Watts) - Max | 150W | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SWS1505 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SWS1505 is in stock for immediate shipping now. We are the distributor of TDK-Lambda Americas Inc. all series components. The condition of SWS1505 is new and unused, you can buy SWS1505 TDK-Lambda Americas Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SWS1505.
