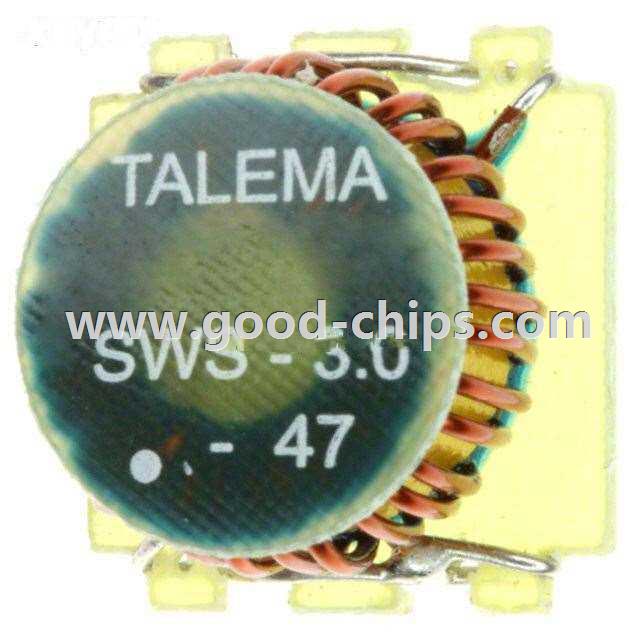

| Manufacturer Part Number: | SWS-3.0-47 |
|---|---|
| Manufacturer: | Amgis, LLC |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 47µH Unshielded Toroidal Inductor 3A 50 mOhm Max Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2 (1 Year) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SWS-3.0-47 Datasheet |
| Internal Part Number | 898-SWS-3.0-47 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Amgis, LLC | |
| Series | SW | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Type | Toroidal | |
| Material - Core | Powdered Iron | |
| Inductance | 47µH | |
| Tolerance | ±20% | |
| Current Rating | 3A | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 50 mOhm Max | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Frequency - Test | 10kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.701" L x 0.669" W (17.80mm x 17.00mm) | |
| Height - Seated (Max) | 0.435" (11.05mm) | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SWS-3.0-47 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SWS-3.0-47 is in stock for immediate shipping now. We are the distributor of Amgis, LLC all series components. The condition of SWS-3.0-47 is new and unused, you can buy SWS-3.0-47 Amgis, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SWS-3.0-47.
