| Manufacturer Part Number: | SWI12-24-N-P5R |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | AC DC Desktop, Wall Adapters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

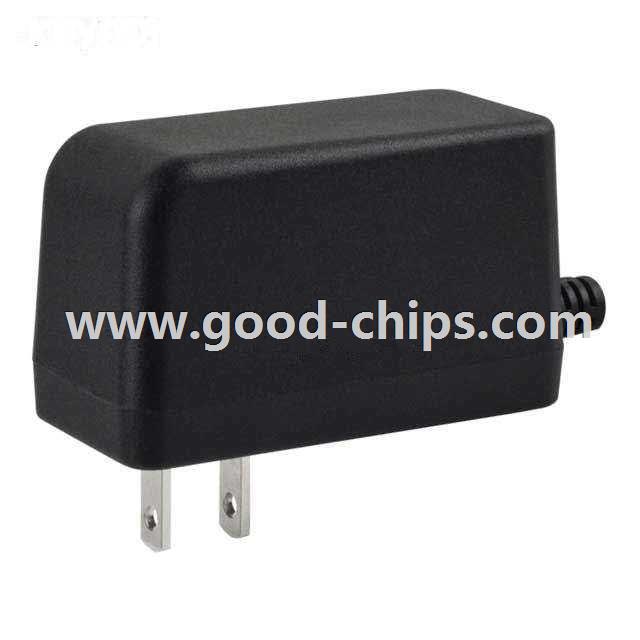

| Description: | 24V 12W AC/DC External Wall Mount Adapter Fixed Blade Input |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SWI12-24-N-P5R Datasheet |
| Internal Part Number | 898-SWI12-24-N-P5R | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Energy Efficiency Standards for External Power Supplies | |
| RoHS Information | SWI12-N Series Cert of Compliance | |
| Featured Product | 6 W to 24 W Level VI Wall Plug-In AC-DC Power Supplies | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Desktop, Wall Adapters | |
| Manufacturer | CUI Inc. | |
| Series | SWI12-N | |
| Part Status | Active | |
| Region Utilized | North America | |
| Form | Wall Mount | |
| Input Type | Fixed Blade | |
| Voltage - Input | 90 ~ 264 VAC | |
| Voltage - Output | 24V | |
| Current - Output (Max) | 500mA | |
| Power (Watts) | 12W | |
| No Load Power Consumption | 75mW (Max) | |
| Polarization | Positive Center | |
| Applications | ITE (Commercial) | |
| Efficiency | Level VI | |
| Operating Temperature | 0°C ~ 40°C | |
| Output Connector | Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm | |
| Size / Dimension | 2.83" L x 1.34" W x 1.65" H (72.0mm x 34.0mm x 42.0mm) | |
| Approvals | cULus, PSE | |
| Power (Watts) - Max | 12W | |
| Input Connector | NEMA 1-15P | |
| Cord Length | 59" (1.50m) | |
| Weight | 0.001 KG | |
| Standard Package | 100 | |
| Application | Email for details | |
| Replacement Part | SWI12-24-N-P5R | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SWI12-24-N-P5R is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of SWI12-24-N-P5R is new and unused, you can buy SWI12-24-N-P5R CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SWI12-24-N-P5R.
