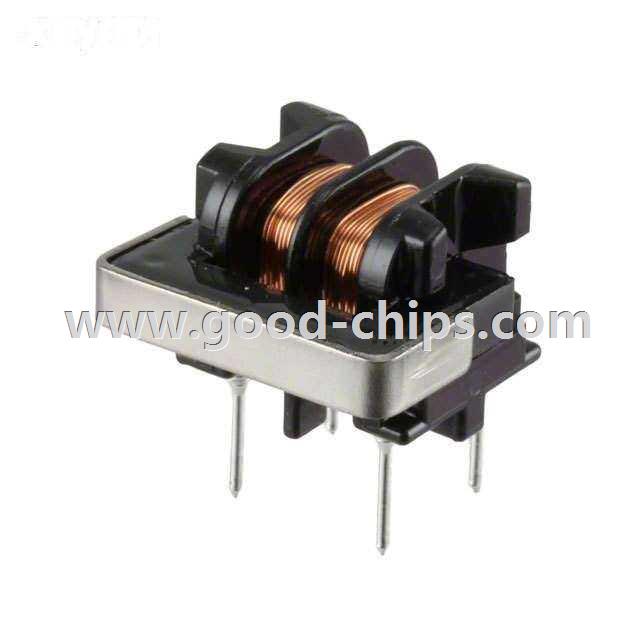

| Manufacturer Part Number: | SU9H-R05034 |
|---|---|
| Manufacturer: | Kemet |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 9993 Pieces |
| Unit Price: | Quote by Email |
| Description: | 3.4mH @ 1kHz 2 Line Common Mode Choke Through Hole 500mA DCR 1 Ohm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SU9H-R05034 Datasheet |
| Internal Part Number | 898-SU9H-R05034 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | AC Line Filters | |
| Online Catalog | SU Series | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | Kemet | |
| Series | SU | |
| Packaging | Bulk | |
| Part Status | Active | |
| Filter Type | Power Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | - | |
| Inductance @ Frequency | 3.4mH @ 1kHz | |
| Current Rating (Max) | 500mA | |
| DC Resistance (DCR) (Max) | 1 Ohm | |
| Voltage Rating - DC | - | |
| Voltage Rating - AC | 250V | |
| Operating Temperature | -25°C ~ 120°C | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Through Hole | |
| Size / Dimension | 0.669" L x 0.610" W (17.00mm x 15.50mm) | |
| Height (Max) | 0.492" (12.50mm) | |
| Package / Case | Vertical, 4 PC Pin | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SU9H-R05034 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SU9H-R05034 is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of SU9H-R05034 is new and unused, you can buy SU9H-R05034 Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SU9H-R05034.
