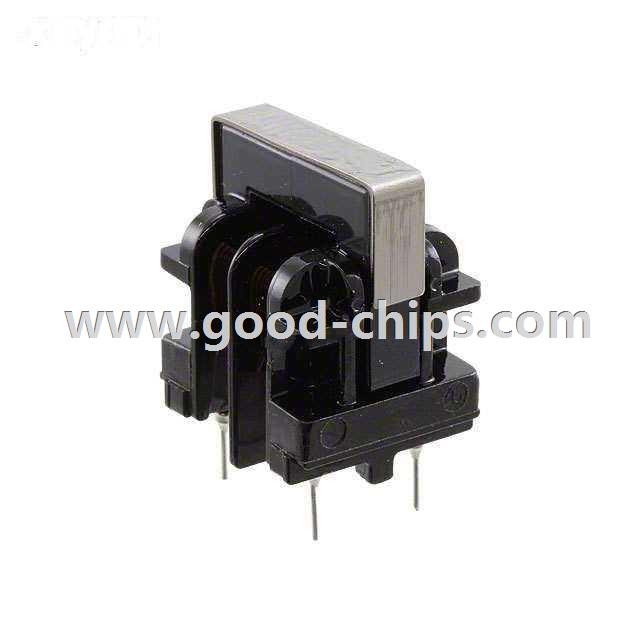

| Manufacturer Part Number: | SU16VD-30030 |
|---|---|
| Manufacturer: | Kemet |
| Product Category: | Common Mode Chokes |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 30µH @ 1kHz 2 Line Common Mode Choke Through Hole 3A DCR 70 mOhm |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SU16VD-30030 Datasheet |
| Internal Part Number | 898-SU16VD-30030 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | AC Line Filters | |
| Online Catalog | SU Series | |
| Category | Filters | |
| Family | Common Mode Chokes | |
| Manufacturer | Kemet | |
| Series | SU | |
| Packaging | Bulk | |
| Part Status | Active | |
| Filter Type | Power Line | |
| Number of Lines | 2 | |
| Impedance @ Frequency | - | |
| Inductance @ Frequency | 30µH @ 1kHz | |
| Current Rating (Max) | 3A | |
| DC Resistance (DCR) (Max) | 70 mOhm | |
| Voltage Rating - DC | - | |
| Voltage Rating - AC | 250V | |
| Operating Temperature | -25°C ~ 120°C | |
| Ratings | - | |
| Approvals | - | |
| Features | - | |
| Mounting Type | Through Hole | |
| Size / Dimension | 0.906" L x 0.748" W (23.00mm x 19.00mm) | |
| Height (Max) | 1.083" (27.50mm) | |
| Package / Case | Vertical, 4 PC Pin | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SU16VD-30030 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SU16VD-30030 is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of SU16VD-30030 is new and unused, you can buy SU16VD-30030 Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SU16VD-30030.
