| Manufacturer Part Number: | STW16N65M5 |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9388 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 650V 12A TO-247 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | STW16N65M5 Datasheet |
| Internal Part Number | 898-STW16N65M5 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | 5th Generation High Voltage Mosfet Technology | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | STMicroelectronics | |
| Series | MDmesh™ V | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 650V | |
| Current - Continuous Drain (Id) @ 25°C | 12A (Tc) | |
| Rds On (Max) @ Id, Vgs | 279 mOhm @ 6A, 10V | |
| Vgs(th) (Max) @ Id | 5V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 31nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 1250pF @ 100V | |
| Power - Max | 90W | |
| Operating Temperature | 150°C (TJ) | |
| Mounting Type | Through Hole | |

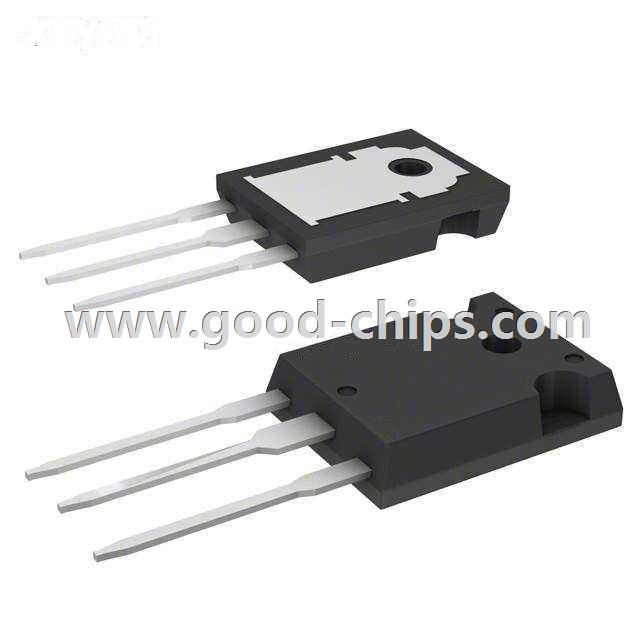

| Package / Case | TO-247-3 | |
| Supplier Device Package | TO-247-3 | |
| Standard Package | 30 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | STW16N65M5 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
STW16N65M5 is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of STW16N65M5 is new and unused, you can buy STW16N65M5 STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for STW16N65M5.
