| Manufacturer Part Number: | STTH30R06PI |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9410 Pieces |
| Unit Price: | Quote by Email |
| Description: | DIODE GEN PURP 600V 30A DOP3I |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | STTH30R06PI Datasheet |
| Internal Part Number | 898-STTH30R06PI | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | STTH30R06 View All Specifications | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Standard Diode | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | STMicroelectronics | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Diode Type | Standard | |
| Voltage - DC Reverse (Vr) (Max) | 600V | |
| Current - Average Rectified (Io) | 30A | |
| Voltage - Forward (Vf) (Max) @ If | 1.85V @ 30A | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 70ns | |
| Current - Reverse Leakage @ Vr | 25µA @ 600V | |
| Capacitance @ Vr, F | - | |
| Mounting Type | Through Hole | |

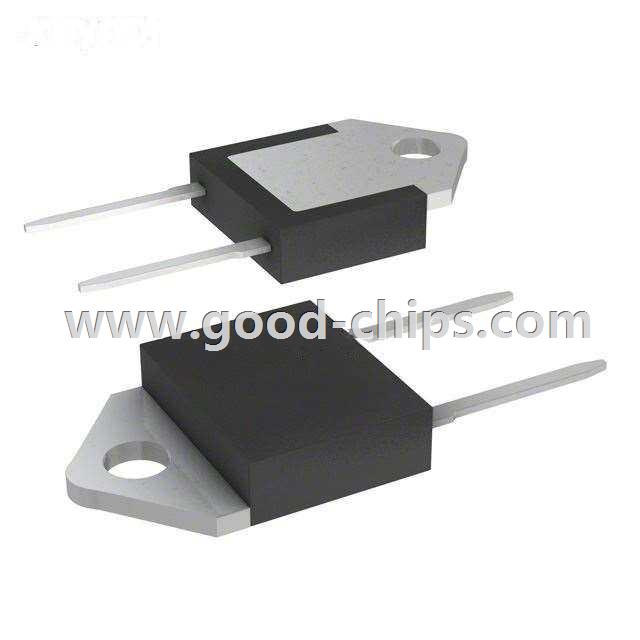

| Package / Case | DOP3I-2 Insulated (Straight Leads) | |
| Supplier Device Package | DOP3I | |
| Operating Temperature - Junction | 175°C (Max) | |
| Standard Package | 30 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | STTH30R06PI | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
STTH30R06PI is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of STTH30R06PI is new and unused, you can buy STTH30R06PI STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for STTH30R06PI.
