| Manufacturer Part Number: | STP4NK50ZD |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 500V 3A TO-220 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | STP4NK50ZD Datasheet |
| Internal Part Number | 898-STP4NK50ZD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | STP4NK50ZD View All Specifications | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | STMicroelectronics | |
| Series | SuperMESH™ | |
| Packaging | Tube | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 500V | |
| Current - Continuous Drain (Id) @ 25°C | 3A (Tc) | |
| Rds On (Max) @ Id, Vgs | 2.7 Ohm @ 1.5A, 10V | |
| Vgs(th) (Max) @ Id | 4.5V @ 50µA | |
| Gate Charge (Qg) @ Vgs | 12nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 310pF @ 25V | |
| Power - Max | 45W | |
| Operating Temperature | -55°C ~ 150°C (TJ) | |
| Mounting Type | Through Hole | |

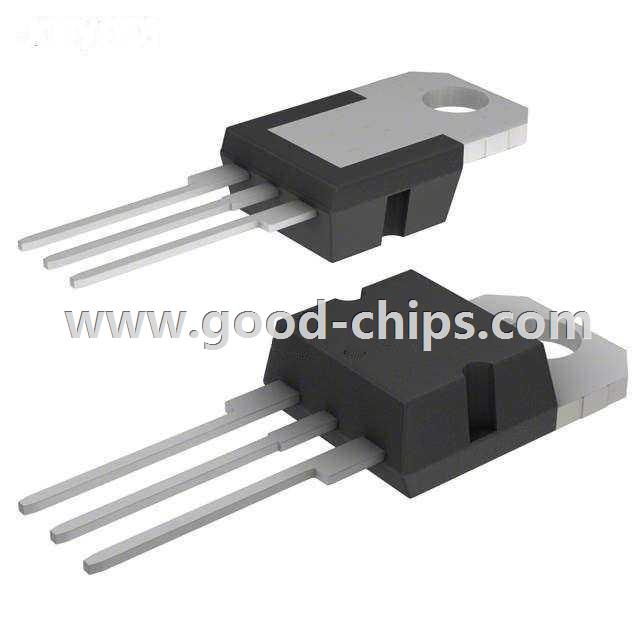

| Package / Case | TO-220-3 | |
| Supplier Device Package | TO-220AB | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | STP4NK50ZD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
STP4NK50ZD is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of STP4NK50ZD is new and unused, you can buy STP4NK50ZD STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for STP4NK50ZD.
