Manufacturer Part Number: | STMPE812ABJR |
---|---|
Manufacturer: | STMicroelectronics |
Product Category: | Data Acquisition - Touch Screen Controllers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Touchscreen Controller 4-Wire 12 bit I²C Interface 12-CSP (2.17x1.67) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | STMPE812ABJR Datasheet |
Internal Part Number | 898-STMPE812ABJR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Integrated Circuits (ICs) | |
Family | Data Acquisition - Touch Screen Controllers | |
Manufacturer | STMicroelectronics | |
Series | S-Touch™ | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Type | Resistive | |
Touch Panel Interface | 4-Wire | |
Number of Inputs/Keys | 1 TSC | |
Resolution (Bits) | 12 b | |
Evaluation Tools | * | |
Data Interface | I²C | |
Data Rate/Sampling Rate (SPS, BPS) | 180k | |
Voltage Reference | Internal | |
Voltage - Supply | 1.65 V ~ 3.6 V | |
Current - Supply | - | |
Operating Temperature | -40°C ~ 85°C | |
Mounting Type | Surface Mount | |

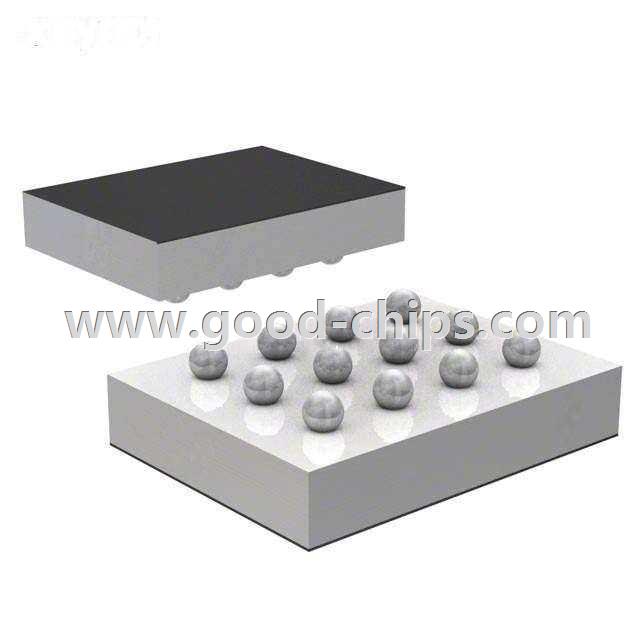

Package / Case | 12-WFBGA, WLCSP | |
Supplier Device Package | 12-CSP (2.17x1.67) | |
Standard Package | 5,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | STMPE812ABJR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
STMPE812ABJR is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of STMPE812ABJR is new and unused, you can buy STMPE812ABJR STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for STMPE812ABJR.
