| Manufacturer Part Number: | STGP3NB60FD |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | Transistors - IGBTs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT 600V 6A 68W Through Hole TO-220AB |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | STGP3NB60FD Datasheet |
| Internal Part Number | 898-STGP3NB60FD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Tail-Less 600 V IGBT V Series | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Single | |
| Manufacturer | STMicroelectronics | |
| Series | PowerMESH™ | |
| Packaging | Tube | |
| Part Status | Obsolete | |
| IGBT Type | - | |
| Voltage - Collector Emitter Breakdown (Max) | 600V | |
| Current - Collector (Ic) (Max) | 6A | |
| Current - Collector Pulsed (Icm) | 24A | |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 3A | |
| Power - Max | 68W | |
| Switching Energy | 125µJ (off) | |
| Input Type | Standard | |
| Gate Charge | 16nC | |
| Td (on/off) @ 25°C | 12.5ns/105ns | |
| Test Condition | 480V, 3A, 10 Ohm, 15V | |
| Reverse Recovery Time (trr) | 45ns | |

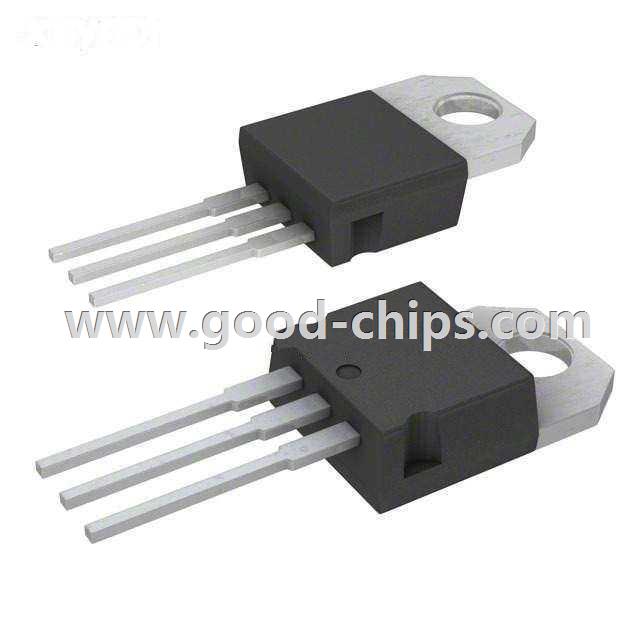

| Package / Case | TO-220-3 | |
| Mounting Type | Through Hole | |
| Supplier Device Package | TO-220AB | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | STGP3NB60FD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
STGP3NB60FD is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of STGP3NB60FD is new and unused, you can buy STGP3NB60FD STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for STGP3NB60FD.
