Manufacturer Part Number: | STGIPN3H60 |
---|---|
Manufacturer: | STMicroelectronics |
Product Category: | Power Driver Modules |
Available Quantity: | 9412 Pieces |
Unit Price: | Quote by Email |
Description: | Power Driver Module IGBT 3 Phase 600V 3A 26-DIP Module (0.846", 21.48mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | STGIPN3H60 Datasheet |
Internal Part Number | 898-STGIPN3H60 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | STGIPN3H60 View All Specifications | |
Product Training Modules | IGBT and SLLIMM IPM | |
Featured Product | SLLIMM™-nano Modules | |
Online Catalog | SLLIMM™-nano Series | |
Category | Discrete Semiconductor Products | |
Family | Power Driver Modules | |
Manufacturer | STMicroelectronics | |
Series | SLLIMM™ | |
Part Status | Active | |
Type | IGBT | |
Configuration | 3 Phase | |
Current | 3A | |
Voltage | 600V | |
Voltage - Isolation | 1000VDC | |

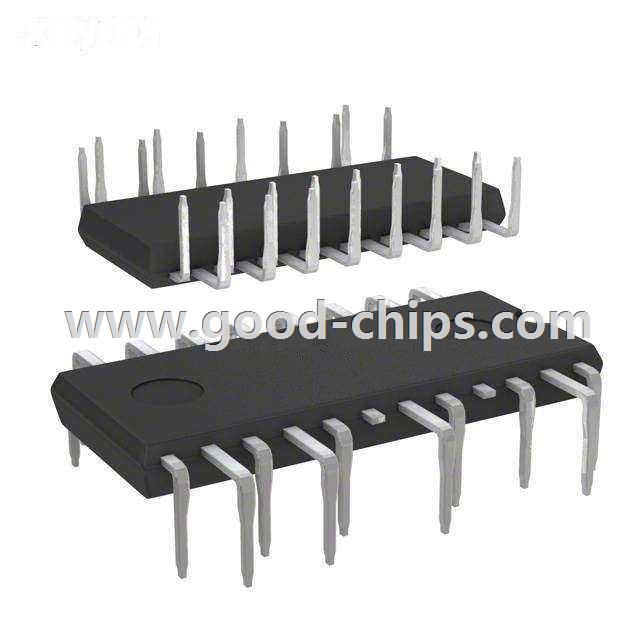

Package / Case | 26-DIP Module (0.846", 21.48mm) | |
Standard Package | 17 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | STGIPN3H60 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
STGIPN3H60 is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of STGIPN3H60 is new and unused, you can buy STGIPN3H60 STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for STGIPN3H60.
