Manufacturer Part Number: | STD44N4LF6 |
---|---|
Manufacturer: | STMicroelectronics |
Product Category: | Transistors - FETs, MOSFETs - Single |
Available Quantity: | 13296 Pieces |
Unit Price: | Quote by Email |
Description: | MOSFET N-CH 40V 44A DPAK |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | STD44N4LF6 Datasheet |
Internal Part Number | 898-STD44N4LF6 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | STD44N4LF6 View All Specifications | |
Product Training Modules | Automotive Grade Transistors and Discretes | |
Featured Product | STripFET VI DeepGATE Series Power MOSFETs | |
Online Catalog | N-Channel Logic Level Gate FETs | |
Category | Discrete Semiconductor Products | |
Family | Transistors - FETs, MOSFETs - Single | |
Manufacturer | STMicroelectronics | |
Series | DeepGATE™, STripFET™ VI | |
Packaging | Digi-Reel® | |
Part Status | Active | |
FET Type | MOSFET N-Channel, Metal Oxide | |
FET Feature | Logic Level Gate | |
Drain to Source Voltage (Vdss) | 40V | |
Current - Continuous Drain (Id) @ 25°C | 44A (Tc) | |
Rds On (Max) @ Id, Vgs | 12.5 mOhm @ 20A, 10V | |
Vgs(th) (Max) @ Id | 2.5V @ 250µA | |
Gate Charge (Qg) @ Vgs | 22nC @ 10V | |
Input Capacitance (Ciss) @ Vds | 1190pF @ 25V | |
Power - Max | 50W | |
Operating Temperature | -55°C ~ 175°C (TJ) | |
Mounting Type | Surface Mount | |

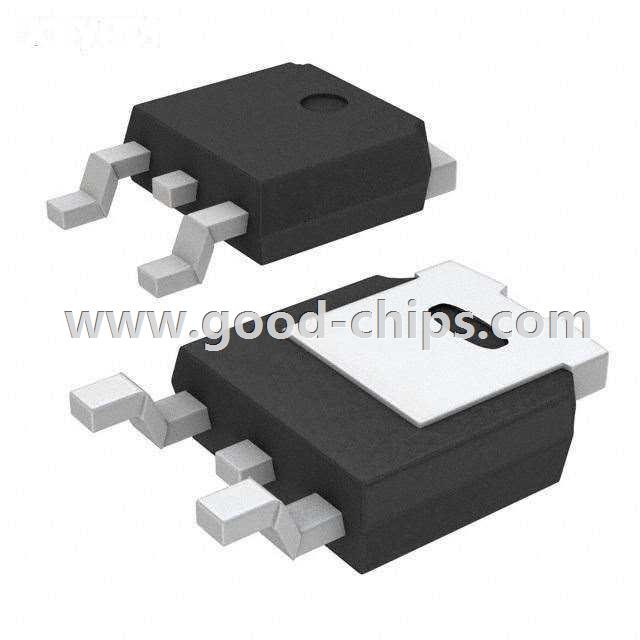

Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | |
Supplier Device Package | D-Pak | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | STD44N4LF6 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
STD44N4LF6 is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of STD44N4LF6 is new and unused, you can buy STD44N4LF6 STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for STD44N4LF6.
