| Manufacturer Part Number: | STCF01PMR |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 1 Output DC DC Regulator Step-Up (Boost) 300mA (Flash) 10-DFN (3x3) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | STCF01PMR Datasheet |
| Internal Part Number | 898-STCF01PMR | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | STMicroelectronics | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | DC DC Regulator | |
| Topology | Step-Up (Boost) | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 1 | |
| Voltage - Supply (Min) | 2.6V | |
| Voltage - Supply (Max) | 5.5V | |
| Voltage - Output | 17V | |
| Current - Output / Channel | 300mA (Flash) | |
| Frequency | 1.5MHz | |
| Dimming | - | |
| Applications | Camera Flash | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

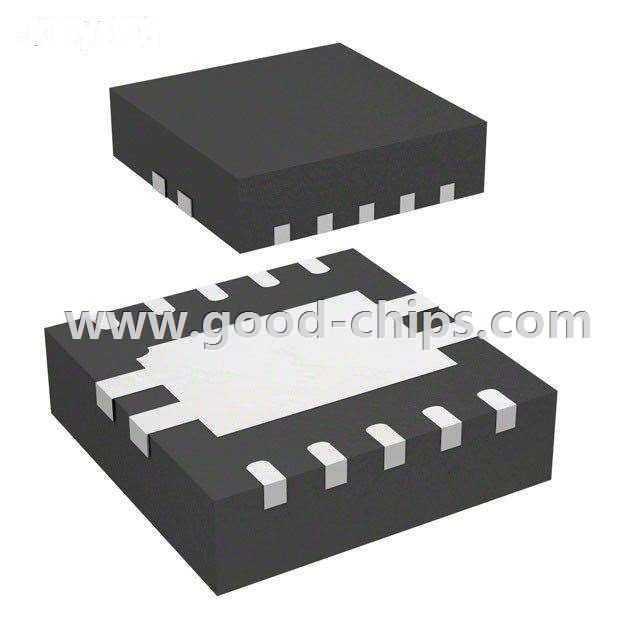

| Package / Case | 10-VFDFN Exposed Pad | |
| Supplier Device Package | 10-DFN (3x3) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | STCF01PMR | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
STCF01PMR is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of STCF01PMR is new and unused, you can buy STCF01PMR STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for STCF01PMR.
