| Manufacturer Part Number: | STB45NF06T4 |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 10010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 60V 38A D2PAK |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | STB45NF06T4 Datasheet |
| Internal Part Number | 898-STB45NF06T4 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | STB45NF06 View All Specifications | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | STMicroelectronics | |
| Series | STripFET™ II | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 60V | |
| Current - Continuous Drain (Id) @ 25°C | 38A (Tc) | |
| Rds On (Max) @ Id, Vgs | 28 mOhm @ 19A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 250µA | |
| Gate Charge (Qg) @ Vgs | 58nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 980pF @ 25V | |
| Power - Max | 80W | |
| Operating Temperature | 175°C (TJ) | |
| Mounting Type | Surface Mount | |

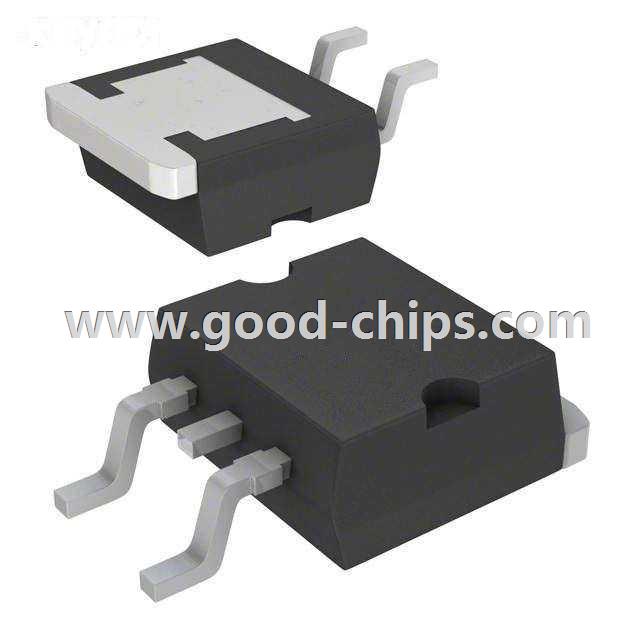

| Package / Case | TO-263-4, D²Pak (3 Leads + Tab), TO-263AA | |
| Supplier Device Package | D2PAK | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | STB45NF06T4 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
STB45NF06T4 is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of STB45NF06T4 is new and unused, you can buy STB45NF06T4 STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for STB45NF06T4.
