Manufacturer Part Number: | ST5ETW502 |
---|---|
Manufacturer: | Copal Electronics Inc. |
Product Category: | Trimmer Potentiometers |
Available Quantity: | 12510 Pieces |
Unit Price: | Quote by Email |

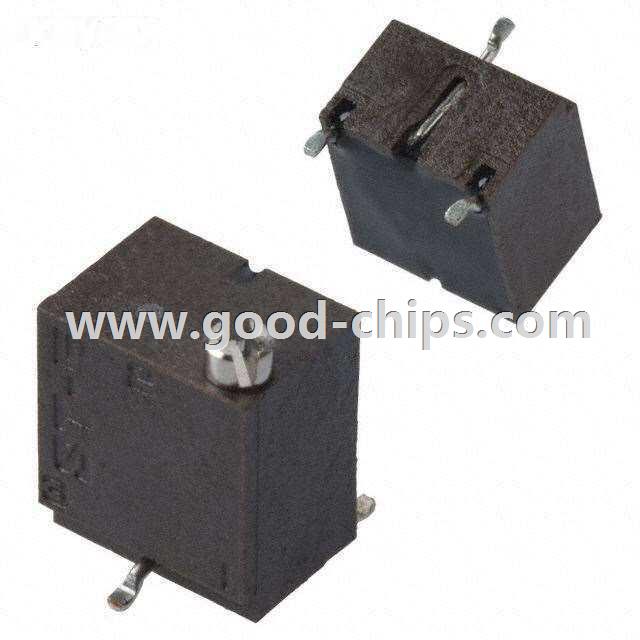

Description: | 5k Ohm 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 14 Turn Top Adjustment |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ST5ETW502 Datasheet |
Internal Part Number | 898-ST5ETW502 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | 3D CAD Models | |
Featured Product | Copal - SMD Trimmer Potentiometers | |
3D Model | ST5ETW502 | |
Online Catalog | ST5 Series | |
Category | Potentiometers, Variable Resistors | |
Family | Trimmer Potentiometers | |
Manufacturer | Copal Electronics Inc. | |
Series | ST5 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Resistance (Ohms) | 5k | |
Power (Watts) | 0.25W, 1/4W | |
Tolerance | ±10% | |
Temperature Coefficient | ±100ppm/°C | |
Number of Turns | 14 | |
Adjustment Type | Top Adjustment | |
Resistive Material | Cermet | |
Mounting Type | Surface Mount | |
Termination Style | Gull Wing | |
Size / Dimension | Square - 0.236" L x 0.169" W x 0.266" H (6.00mm x 4.30mm x 6.75mm) | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ST5ETW502 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ST5ETW502 is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of ST5ETW502 is new and unused, you can buy ST5ETW502 Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ST5ETW502.
