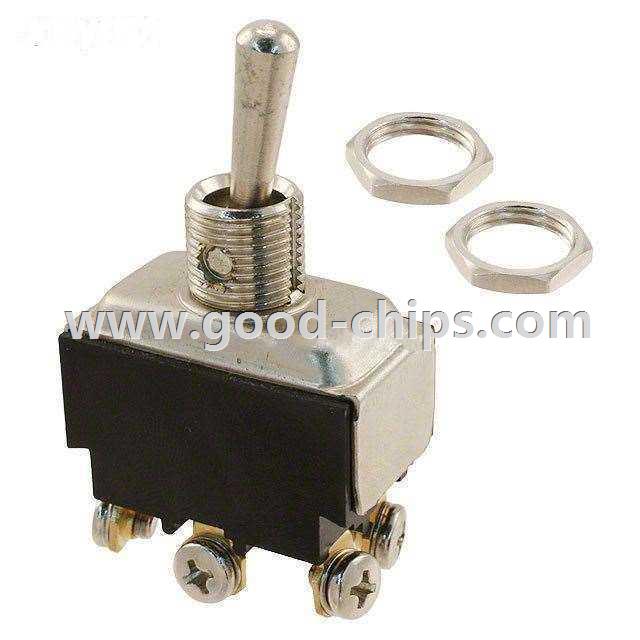

| Manufacturer Part Number: | ST26GD00 |
|---|---|
| Manufacturer: | E-Switch |
| Product Category: | Toggle Switches |
| Available Quantity: | 10615 Pieces |
| Unit Price: | Quote by Email |
| Description: | Toggle Switch DPDT Panel Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ST26GD00 Datasheet |
| Internal Part Number | 898-ST26GD00 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Switch Overview | |
| RoHS Information | Switches RoHS Certof Compliance | |
| Online Catalog | ST2, LAMB Series | |
| Category | Switches | |
| Family | Toggle Switches | |
| Manufacturer | E-Switch | |
| Series | ST2, LAMB | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | DPDT | |
| Switch Function | On-On | |
| Current Rating | 20A (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Standard Round | |
| Actuator Length | 17.50mm | |
| Illumination | Non-Illuminated | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount | |
| Termination Style | Screw Terminal | |
| Panel Cutout Dimensions | Circular - 12.00mm Dia | |
| Bushing Thread | M12 x 1 | |
| Ingress Protection | - | |
| Features | - | |
| Actuator Material | Brass, Nickel Plated | |
| Electrical Life | 6,000 Cycles | |
| Operating Temperature | -20°C ~ 85°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ST26GD00 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ST26GD00 is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of ST26GD00 is new and unused, you can buy ST26GD00 E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ST26GD00.
