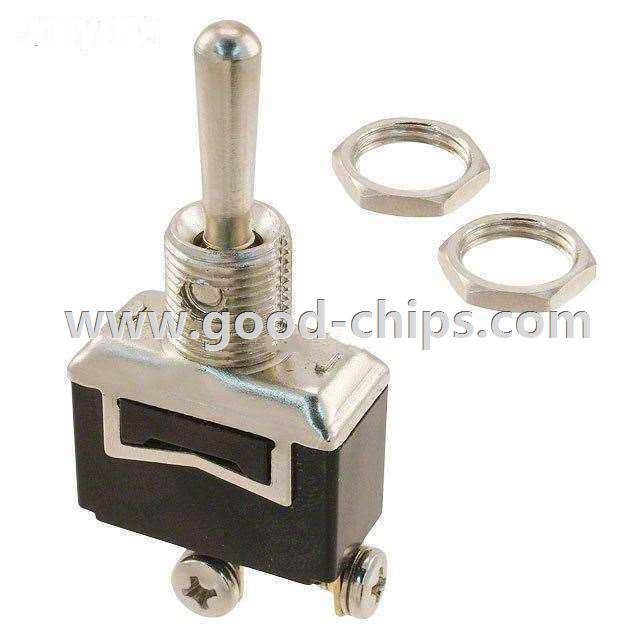

Manufacturer Part Number: | ST164D00 |
---|---|
Manufacturer: | E-Switch |
Product Category: | Toggle Switches |
Available Quantity: | 9987 Pieces |
Unit Price: | Quote by Email |
Description: | Toggle Switch SPST-NO Panel Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ST164D00 Datasheet |
Internal Part Number | 898-ST164D00 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Power Switch Overview | |
RoHS Information | Switches RoHS Certof Compliance | |
Online Catalog | ST1, LAMB Series | |
Category | Switches | |
Family | Toggle Switches | |
Manufacturer | E-Switch | |
Series | ST1, LAMB | |
Packaging | Bulk | |
Part Status | Active | |
Circuit | SPST-NO | |
Switch Function | Off-Mom | |
Current Rating | 20A (AC) | |
Voltage Rating - AC | 125V | |
Voltage Rating - DC | - | |
Actuator Type | Standard Round | |
Actuator Length | 19.50mm | |
Illumination | Non-Illuminated | |
Illumination Type, Color | - | |
Illumination Voltage (Nominal) | - | |
Mounting Type | Panel Mount | |
Termination Style | Screw Terminal | |
Panel Cutout Dimensions | Circular - 12.00mm Dia | |
Bushing Thread | M12 x 1 | |
Ingress Protection | - | |
Features | - | |
Actuator Material | Brass, Nickel Plated | |
Electrical Life | 6,000 Cycles | |
Operating Temperature | -20°C ~ 85°C | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ST164D00 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ST164D00 is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of ST164D00 is new and unused, you can buy ST164D00 E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ST164D00.
