| Manufacturer Part Number: | ST1284-02A8RL |
|---|---|
| Manufacturer: | STMicroelectronics |
| Product Category: | EMI/RFI Filters (LC, RC Networks) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RC EMI Filter Low Pass 17 Channel R = 33 Ohms, 4.7 kOhms, C = 180pF 28-LSSOP (0.154", 3.90mm Width) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ST1284-02A8RL Datasheet |
| Internal Part Number | 898-ST1284-02A8RL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Filters | |
| Family | EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | STMicroelectronics | |
| Series | ST1284 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Type | Low Pass | |
| Filter Order | - | |
| Technology | RC | |
| Number of Channels | 17 | |
| Center / Cutoff Frequency | - | |
| Attenuation Value | - | |
| Resistance - Channel (Ohms) | - | |
| Current | - | |
| Values | R = 33 Ohms, 4.7 kOhms, C = 180pF | |
| ESD Protection | Yes | |
| Operating Temperature | 0°C ~ 70°C | |
| Applications | Data Lines for Mobile Devices | |
| Voltage - Rated | - | |
| Mounting Type | Surface Mount | |

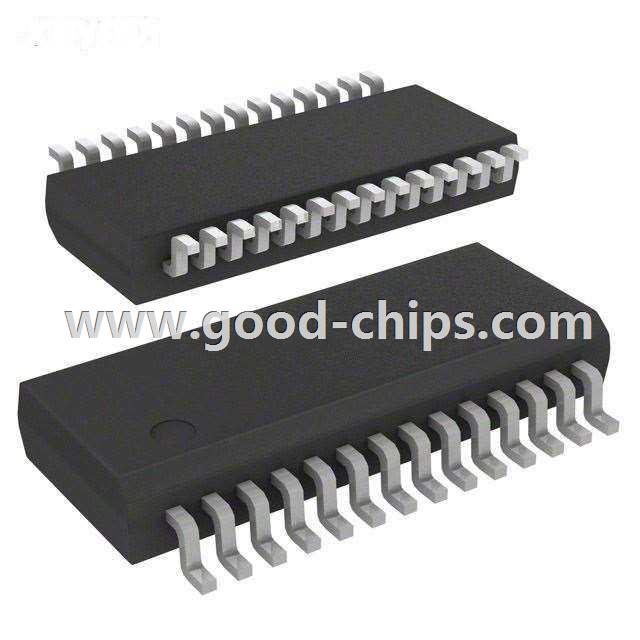

| Package / Case | 28-LSSOP (0.154", 3.90mm Width) | |
| Size / Dimension | 0.389" L x 0.154" W (9.89mm x 3.90mm) | |
| Height | 0.069" (1.75mm) | |
| Standard Package | 2,500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ST1284-02A8RL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ST1284-02A8RL is in stock for immediate shipping now. We are the distributor of STMicroelectronics all series components. The condition of ST1284-02A8RL is new and unused, you can buy ST1284-02A8RL STMicroelectronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ST1284-02A8RL.
