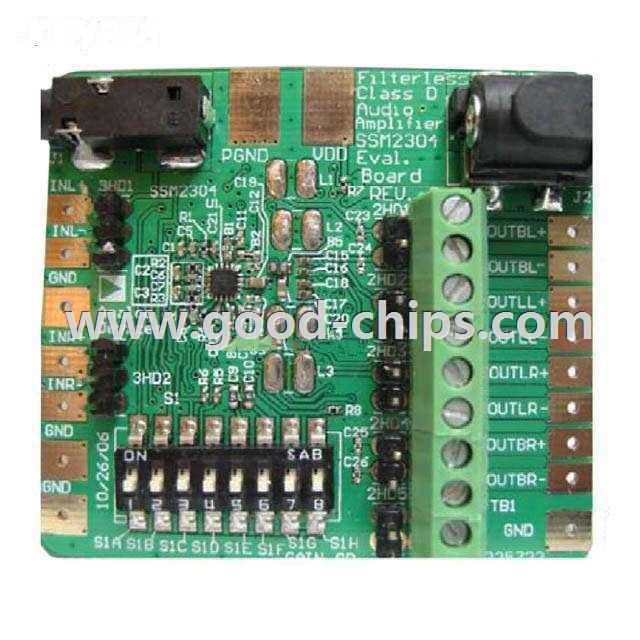

| Manufacturer Part Number: | SSM2304Z-EVAL |
|---|---|
| Manufacturer: | Analog Devices Inc. |
| Product Category: | Evaluation Boards - Audio Amplifiers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | SSM2304 - 2-Channel (Stereo) Output Class D Audio Amplifier Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SSM2304Z-EVAL Datasheet |
| Internal Part Number | 898-SSM2304Z-EVAL | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Audio Amplifiers | |
| Manufacturer | Analog Devices Inc. | |
| Series | - | |
| Part Status | Obsolete | |
| Amplifier Type | Class D | |
| Output Type | 2-Channel (Stereo) | |
| Max Output Power x Channels @ Load | 2.4W x 2 @ 4 Ohm | |
| Voltage - Supply | 2.5 V ~ 5 V | |
| Board Type | Fully Populated | |
| Utilized IC / Part | SSM2304 | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SSM2304Z-EVAL | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SSM2304Z-EVAL is in stock for immediate shipping now. We are the distributor of Analog Devices Inc. all series components. The condition of SSM2304Z-EVAL is new and unused, you can buy SSM2304Z-EVAL Analog Devices Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SSM2304Z-EVAL.
