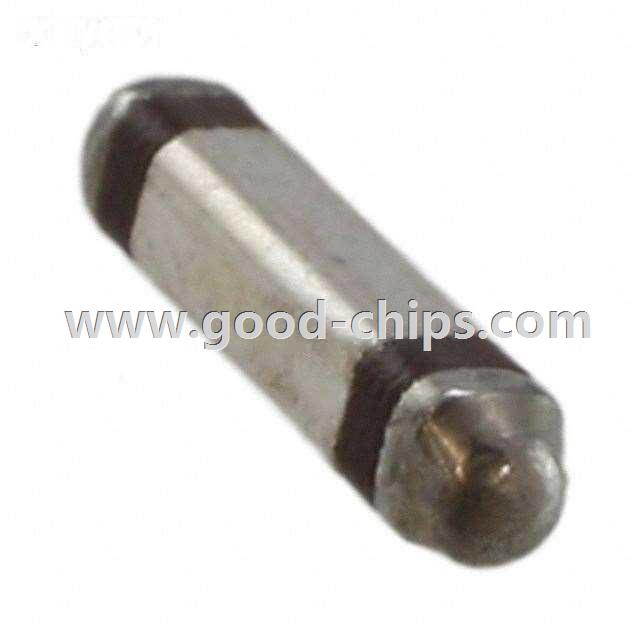

| Manufacturer Part Number: | SSM1F-822Z-10T1 |
|---|---|
| Manufacturer: | API Technologies Corp |
| Product Category: | EMI/RFI Filters (LC, RC Networks) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel C = 8200pF 10A Pill, Square |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SSM1F-822Z-10T1 Datasheet |
| Internal Part Number | 898-SSM1F-822Z-10T1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Standard Package | 1,000 | |
| Category | Filters | |
| Family | EMI/RFI Filters (LC, RC Networks) | |
| Manufacturer | API Technologies Corp | |
| Series | SSM | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Low Pass | |
| Filter Order | 3rd | |
| Technology | LC (Pi) | |
| Number of Channels | 1 | |
| Center / Cutoff Frequency | - | |
| Attenuation Value | - | |
| Resistance - Channel (Ohms) | - | |
| Current | 10A | |
| Values | C = 8200pF | |
| ESD Protection | No | |
| Operating Temperature | -55°C ~ 125°C | |
| Applications | Data Lines for Mobile Devices | |
| Voltage - Rated | 100V | |
| Mounting Type | Surface Mount | |
| Package / Case | Pill, Square | |
| Size / Dimension | 0.315" L x 0.083" W (8.00mm x 2.10mm) | |
| Height | 0.087" (2.20mm) | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SSM1F-822Z-10T1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SSM1F-822Z-10T1 is in stock for immediate shipping now. We are the distributor of API Technologies Corp all series components. The condition of SSM1F-822Z-10T1 is new and unused, you can buy SSM1F-822Z-10T1 API Technologies Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SSM1F-822Z-10T1.
