| Manufacturer Part Number: | SSI-LXR3612SRD |
|---|---|
| Manufacturer: | Lumex Opto/Components Inc. |
| Product Category: | Panel Indicators, Pilot Lights |
| Available Quantity: | 9662 Pieces |
| Unit Price: | Quote by Email |

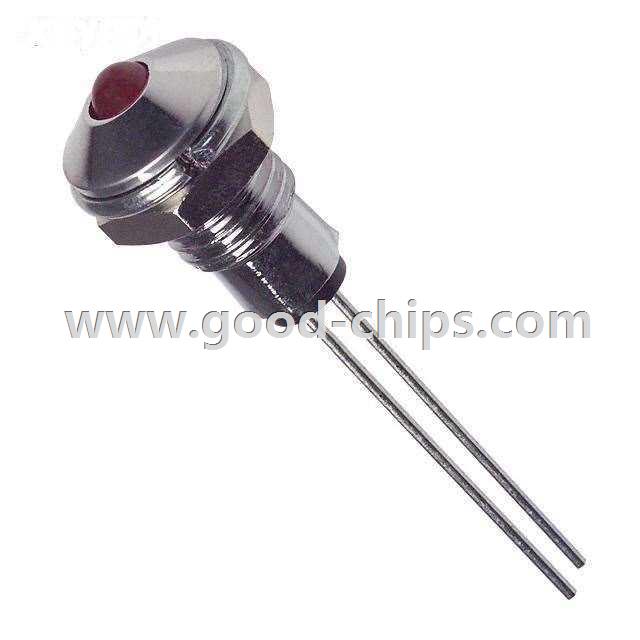

| Description: | LED Panel Indicator Red Diffused 60° 1.8V 30mA Round with Domed Top, 3mm (T-1) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SSI-LXR3612SRD Datasheet |
| Internal Part Number | 898-SSI-LXR3612SRD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | LEDs Benefits of Custom LED and LCD Technology | |
| Online Catalog | Panel Mount Indicators | |
| Category | Optoelectronics | |
| Family | Panel Indicators, Pilot Lights | |
| Manufacturer | Lumex Opto/Components Inc. | |
| Series | - | |
| Part Status | Active | |
| Type | LED | |
| Lamp Color | Red | |
| Lens Color | Red | |
| Lens Transparency | Diffused | |
| Ratings | Vf (Typ), If (Max) | |
| Voltage | 1.8V | |
| Current | 30mA | |
| Panel Cutout Shape | Round | |
| Panel Cutout Dimensions | 0.24" (6.10mm) | |
| Lens Style/Size | Round with Domed Top, 3mm (T-1) | |
| Millicandela Rating | 65mcd | |
| Wavelength - Peak | 660nm | |
| Viewing Angle | 60° | |
| Termination Style | - | |
| Ingress Protection | - | |
| Features | - | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SSI-LXR3612SRD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SSI-LXR3612SRD is in stock for immediate shipping now. We are the distributor of Lumex Opto/Components Inc. all series components. The condition of SSI-LXR3612SRD is new and unused, you can buy SSI-LXR3612SRD Lumex Opto/Components Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SSI-LXR3612SRD.
