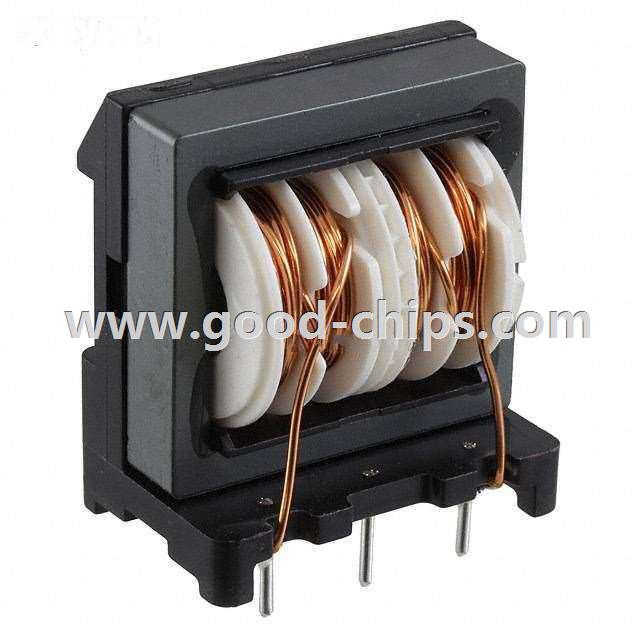

Manufacturer Part Number: | SS35V-45022 |
---|---|
Manufacturer: | Kemet |
Product Category: | Common Mode Chokes |
Available Quantity: | 9150 Pieces |
Unit Price: | Quote by Email |
Description: | 2.2mH @ 1kHz 2 Line Common Mode Choke Through Hole 4.5A DCR 60 mOhm |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SS35V-45022 Datasheet |
Internal Part Number | 898-SS35V-45022 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | AC Line Filters | |
PCN Design/Specification | 4MC of SS Coil Series 26/Mar/2014 | |
Online Catalog | SS Series | |
Category | Filters | |
Family | Common Mode Chokes | |
Manufacturer | Kemet | |
Series | SS | |
Packaging | Bulk | |
Part Status | Active | |
Filter Type | Power Line | |
Number of Lines | 2 | |
Impedance @ Frequency | - | |
Inductance @ Frequency | 2.2mH @ 1kHz | |
Current Rating (Max) | 4.5A | |
DC Resistance (DCR) (Max) | 60 mOhm | |
Voltage Rating - DC | - | |
Voltage Rating - AC | 250V | |
Operating Temperature | -25°C ~ 120°C | |
Ratings | - | |
Approvals | - | |
Features | - | |
Mounting Type | Through Hole | |
Size / Dimension | 1.457" L x 1.043" W (37.00mm x 26.50mm) | |
Height (Max) | 1.614" (41.00mm) | |
Package / Case | Vertical, 6 PC Pin | |
Standard Package | 30 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SS35V-45022 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SS35V-45022 is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of SS35V-45022 is new and unused, you can buy SS35V-45022 Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SS35V-45022.
