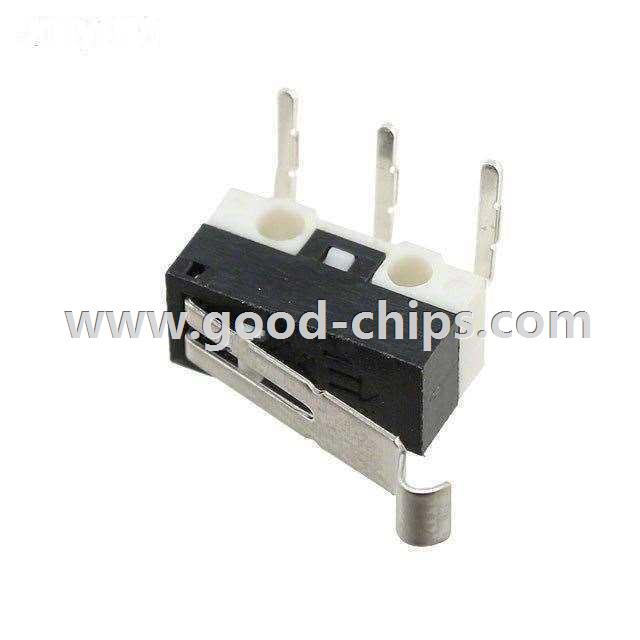

| Manufacturer Part Number: | SS075Q102F035V2A |
|---|---|
| Manufacturer: | E-Switch |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 10609 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACT SPDT 100MA 125V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SS075Q102F035V2A Datasheet |
| Internal Part Number | 898-SS075Q102F035V2A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Power Switch Overview | |
| RoHS Information | SS Series RoHS Cert of Compliance | |
| 3D Model | SS075Q102FyyyV2A.stp | |
| Online Catalog | SS Series | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | E-Switch | |
| Series | SS | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 100mA (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Lever, Simulated Roller | |
| Mounting Type | Through Hole, Right Angle | |
| Termination Style | PC Pin | |
| Ingress Protection | - | |
| Features | - | |
| Operating Force, Torque | 35gf | |
| Release Force | 10gf | |
| Pretravel | 0.080" (2.0mm) | |
| Differential Travel | - | |
| Overtravel | - | |
| Operating Position | 0.425" (10.8mm) | |
| Mechanical Life | 1,000,000 Cycles | |
| Electrical Life | 100,000 Cycles | |
| Operating Temperature | -25°C ~ 75°C | |
| Standard Package | 120 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SS075Q102F035V2A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SS075Q102F035V2A is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of SS075Q102F035V2A is new and unused, you can buy SS075Q102F035V2A E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SS075Q102F035V2A.
