| Manufacturer Part Number: | SS0503EC-TR-H |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Diodes - Rectifiers - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Diode Schottky 30V 500mA Surface Mount 2-ECSP1008 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SS0503EC-TR-H Datasheet |
| Internal Part Number | 898-SS0503EC-TR-H | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Discrete Semiconductor Products | |
| Family | Diodes - Rectifiers - Single | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Diode Type | Schottky | |
| Voltage - DC Reverse (Vr) (Max) | 30V | |
| Current - Average Rectified (Io) | 500mA | |
| Voltage - Forward (Vf) (Max) @ If | 560mV @ 500mA | |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
| Reverse Recovery Time (trr) | 10ns | |
| Current - Reverse Leakage @ Vr | 100µA @ 15V | |
| Capacitance @ Vr, F | 6pF @ 10V, 1MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | 2-UDFN | |

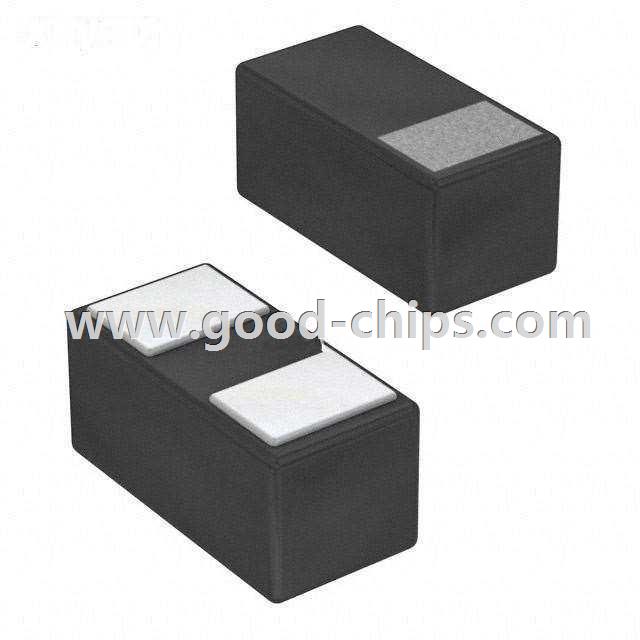

| Supplier Device Package | 2-ECSP1008 | |
| Operating Temperature - Junction | -55°C ~ 125°C | |
| Standard Package | 10,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SS0503EC-TR-H | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SS0503EC-TR-H is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of SS0503EC-TR-H is new and unused, you can buy SS0503EC-TR-H ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SS0503EC-TR-H.
