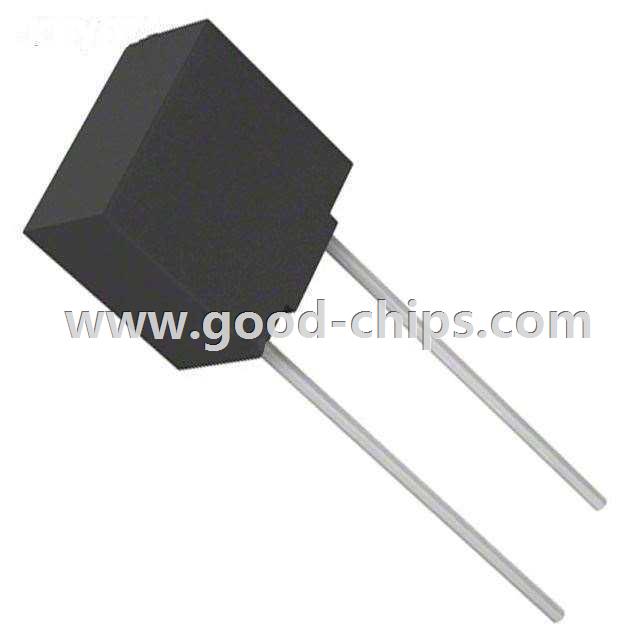

| Manufacturer Part Number: | SS-5-500MA-AP |
|---|---|
| Manufacturer: | Eaton |
| Product Category: | Fuses |
| Available Quantity: | 11010 Pieces |
| Unit Price: | Quote by Email |
| Description: | FUSE BRD MNT 500MA 250VAC RADIAL |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SS-5-500MA-AP Datasheet |
| Internal Part Number | 898-SS-5-500MA-AP | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | SS-5(H) Ammo Pack Paper Thickness 30/Aug/2011 S -8yyy,HTC-yy,PC,SR-5,SS-5 Series 01/May/2014 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | SS-5 Series | |
| Category | Circuit Protection | |
| Family | Fuses | |
| Manufacturer | Eaton | |
| Series | SS-5 | |
| Packaging | Tape & Box (TB) | |
| Part Status | Active | |
| Fuse Type | Board Mount (Cartridge Style Excluded) | |
| Current Rating | 500mA | |
| Voltage Rating - AC | 250V | |
| Voltage Rating - DC | - | |
| Response Time | Slow | |
| Package / Case | Radial, Box | |
| Mounting Type | Through Hole | |
| Breaking Capacity @ Rated Voltage | 35A | |
| Melting I²t | 1.79 | |
| Approvals | CQC, cULus, EK-MARK, SEMKO, VDE | |
| Operating Temperature | -40°C ~ 125°C | |
| Color | - | |
| Size / Dimension | 0.335" L x 0.169" W x 0.329" H (8.50mm x 4.30mm x 8.35mm) | |
| DC Cold Resistance | 0.2575 Ohm | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SS-5-500MA-AP | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SS-5-500MA-AP is in stock for immediate shipping now. We are the distributor of Eaton all series components. The condition of SS-5-500MA-AP is new and unused, you can buy SS-5-500MA-AP Eaton with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SS-5-500MA-AP.
