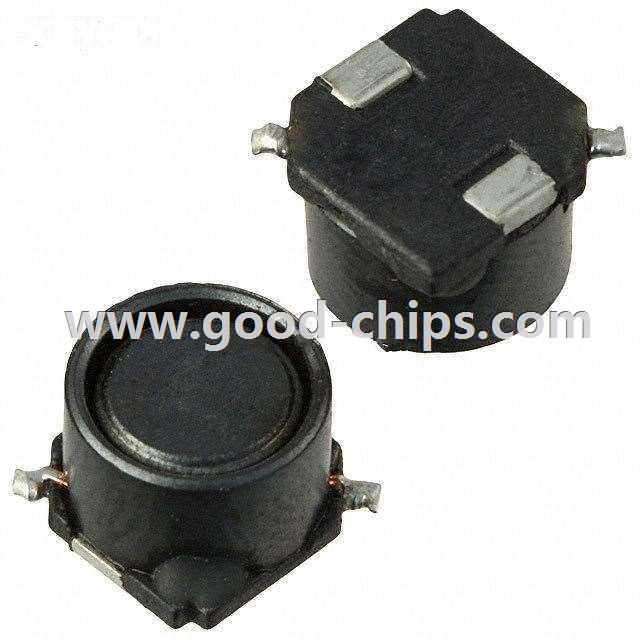

| Manufacturer Part Number: | SRR7045-151M |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 11010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 150µH Shielded Wirewound Inductor 530mA 480 mOhm Max Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SRR7045-151M Datasheet |
| Internal Part Number | 898-SRR7045-151M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Magnetic Product Overview | |
| 3D Model | SRR7045.stp | |
| PCN Design/Specification | SRR7032,45/PM74SH Modifications Dec/2013 | |
| PCN Assembly/Origin | Magnetic products Oct/2013 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Bourns Inc. | |
| Series | SRR7045 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 150µH | |
| Tolerance | ±20% | |
| Current Rating | 530mA | |
| Current - Saturation | 410mA | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 480 mOhm Max | |
| Q @ Freq | 51 @ 796kHz | |
| Frequency - Self Resonant | 7MHz | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.276" L x 0.276" W (7.00mm x 7.00mm) | |
| Height - Seated (Max) | 0.189" (4.80mm) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SRR7045-151M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SRR7045-151M is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of SRR7045-151M is new and unused, you can buy SRR7045-151M Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SRR7045-151M.
