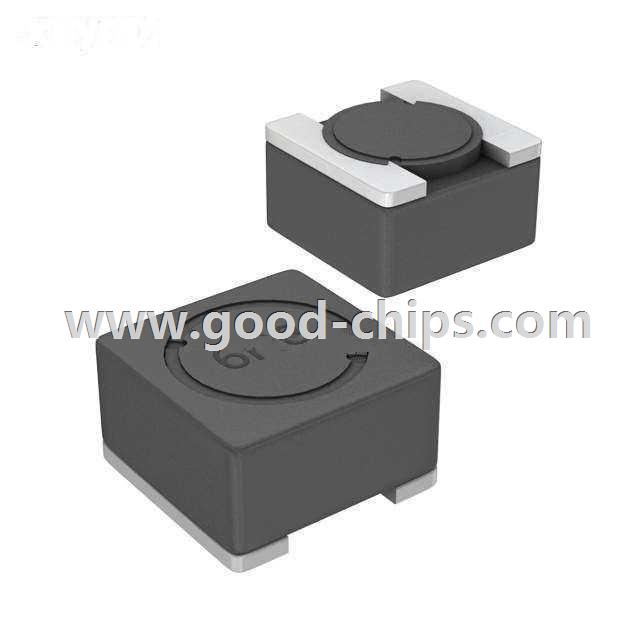

Manufacturer Part Number: | SRR4028-100Y |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 12510 Pieces |
Unit Price: | Quote by Email |
Description: | 10µH Shielded Wirewound Inductor 1.19A 110 mOhm Max 1919 (4848 Metric) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SRR4028-100Y Datasheet |
Internal Part Number | 898-SRR4028-100Y | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | SRR4028 Series Material Declaration | |
3D Model | SRR4028.stp | |
PCN Assembly/Origin | Magnetic products Oct/2013 | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Bourns Inc. | |
Series | SRR4028 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 10µH | |
Tolerance | ±30% | |
Current Rating | 1.19A | |
Current - Saturation | 1A | |
Shielding | Shielded | |
DC Resistance (DCR) | 110 mOhm Max | |
Q @ Freq | 11.26 @ 2.52MHz | |
Frequency - Self Resonant | 34MHz | |
Ratings | - | |
Operating Temperature | -40°C ~ 125°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | 1919 (4848 Metric) | |
Size / Dimension | 0.189" L x 0.189" W (4.80mm x 4.80mm) | |
Height - Seated (Max) | 0.118" (3.00mm) | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SRR4028-100Y | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SRR4028-100Y is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of SRR4028-100Y is new and unused, you can buy SRR4028-100Y Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SRR4028-100Y.
