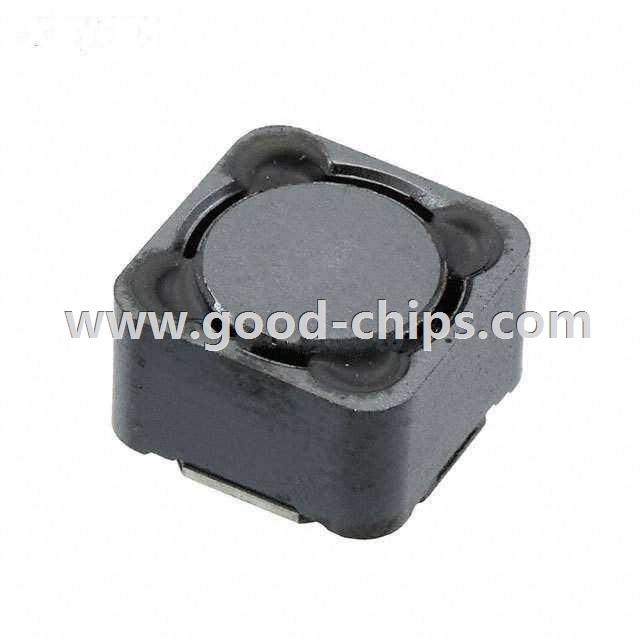

Manufacturer Part Number: | SRR1280A-180M |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 9053 Pieces |
Unit Price: | Quote by Email |
Description: | 18µH Shielded Inductor 4.8A 35 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SRR1280A-180M Datasheet |
Internal Part Number | 898-SRR1280A-180M | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | SRR1280A.stp | |
PCN Assembly/Origin | Magnetic products Oct/2013 | |
Online Catalog | SRR Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Bourns Inc. | |
Series | SRR1280A | |
Packaging | Cut Tape (CT) | |
Part Status | Active | |
Type | - | |
Material - Core | Ferrite | |
Inductance | 18µH | |
Tolerance | ±20% | |
Current Rating | 4.8A | |
Current - Saturation | 4.6A | |
Shielding | Shielded | |
DC Resistance (DCR) | 35 mOhm Max | |
Q @ Freq | 24 @ 2.52MHz | |
Frequency - Self Resonant | 12MHz | |
Ratings | AEC-Q200 | |
Operating Temperature | -40°C ~ 125°C | |
Frequency - Test | 1kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | |
Height - Seated (Max) | 0.315" (8.00mm) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SRR1280A-180M | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SRR1280A-180M is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of SRR1280A-180M is new and unused, you can buy SRR1280A-180M Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SRR1280A-180M.
