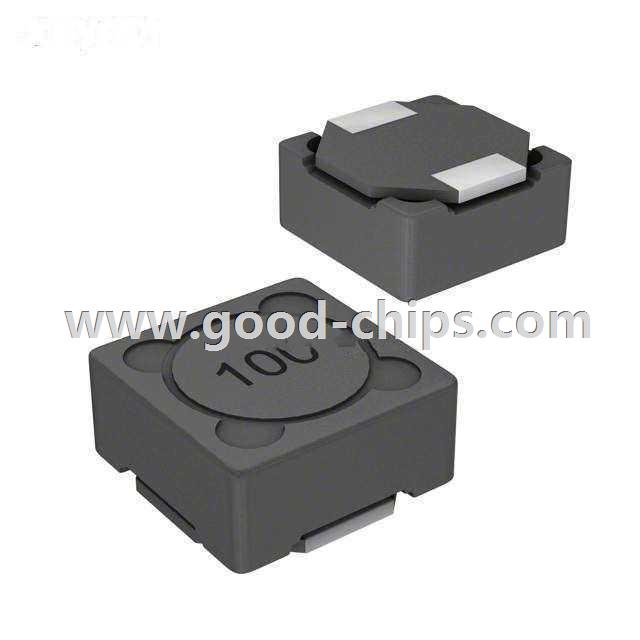

| Manufacturer Part Number: | SRR1260-100M |
|---|---|
| Manufacturer: | Bourns Inc. |
| Product Category: | Fixed Inductors |
| Available Quantity: | 18610 Pieces |
| Unit Price: | Quote by Email |
| Description: | 10µH Shielded Wirewound Inductor 5.5A 20 mOhm Max Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | SRR1260-100M Datasheet |
| Internal Part Number | 898-SRR1260-100M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Magnetic Product Overview | |
| RoHS Information | SRR1260 Series Material Declaration | |
| 3D Model | SRR1260.stp | |
| PCN Design/Specification | SRR12(6,8,1)0, PM12(5,7)SH Models 17/Aug/2011 | |
| PCN Assembly/Origin | Magnetic products Oct/2013 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | SRR Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | Bourns Inc. | |
| Series | SRR1260 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Ferrite | |
| Inductance | 10µH | |
| Tolerance | ±20% | |
| Current Rating | 5.5A | |
| Current - Saturation | 5.5A | |
| Shielding | Shielded | |
| DC Resistance (DCR) | 20 mOhm Max | |
| Q @ Freq | 32 @ 2.52MHz | |
| Frequency - Self Resonant | 21MHz | |
| Ratings | - | |
| Operating Temperature | -40°C ~ 125°C | |
| Frequency - Test | 100kHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.492" L x 0.492" W (12.50mm x 12.50mm) | |
| Height - Seated (Max) | 0.256" (6.50mm) | |
| Standard Package | 600 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | SRR1260-100M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
SRR1260-100M is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of SRR1260-100M is new and unused, you can buy SRR1260-100M Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SRR1260-100M.
