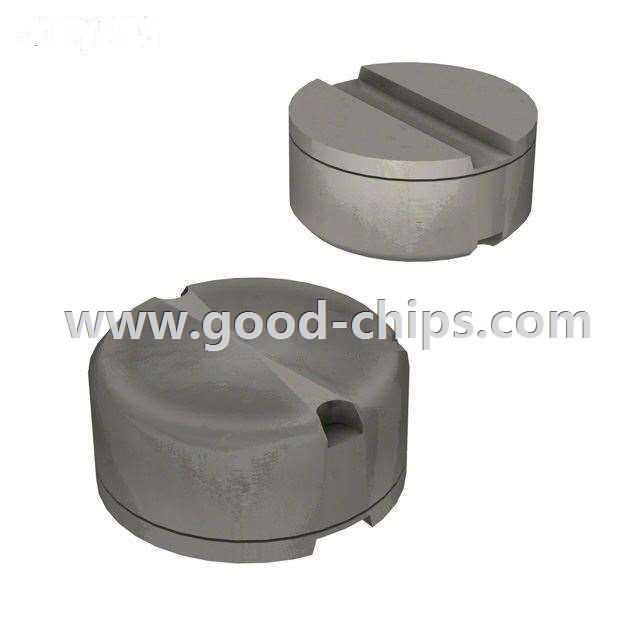

Manufacturer Part Number: | SRR0905-151K |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 10610 Pieces |
Unit Price: | Quote by Email |
Description: | 150µH Shielded Wirewound Inductor 550mA 510 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SRR0905-151K Datasheet |
Internal Part Number | 898-SRR0905-151K | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Magnetic Product Overview | |
RoHS Information | SRR0905 Series Material Declaration | |
3D Model | SRR0905.stp | |
PCN Assembly/Origin | Magnetic products Oct/2013 | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Bourns Inc. | |
Series | SRR0905 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 150µH | |
Tolerance | ±10% | |
Current Rating | 550mA | |
Current - Saturation | - | |
Shielding | Shielded | |
DC Resistance (DCR) | 510 mOhm Max | |
Q @ Freq | 24 @ 796kHz | |
Frequency - Self Resonant | 6MHz | |
Ratings | - | |
Operating Temperature | -40°C ~ 125°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.390" L x 0.390" W (9.90mm x 9.90mm) | |
Height - Seated (Max) | 0.189" (4.80mm) | |
Standard Package | 800 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SRR0905-151K | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SRR0905-151K is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of SRR0905-151K is new and unused, you can buy SRR0905-151K Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SRR0905-151K.
