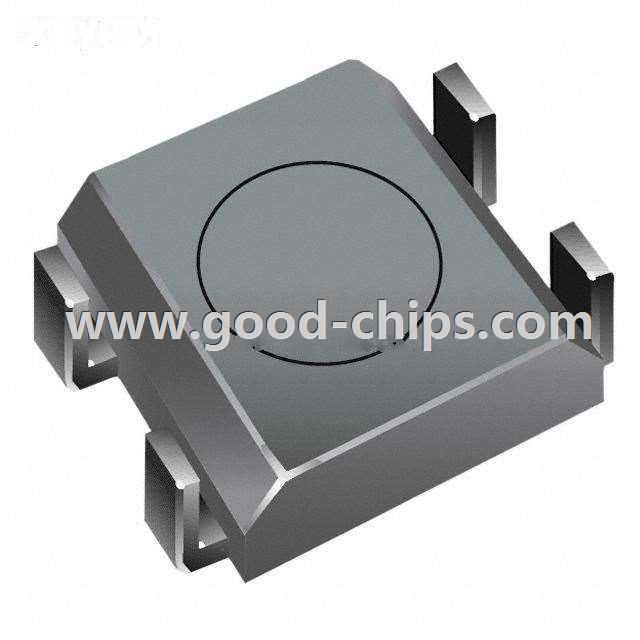

Manufacturer Part Number: | SRR0618-4R7ML |
---|---|
Manufacturer: | Bourns Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 4.7µH Shielded Wirewound Inductor 1.05A 100 mOhm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | SRR0618-4R7ML Datasheet |
Internal Part Number | 898-SRR0618-4R7ML | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | SRR0618.stp | |
PCN Obsolescence/ EOL | SRR0618 Series Apr/2016 | |
PCN Assembly/Origin | Magnetic products Oct/2013 | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | Bourns Inc. | |
Series | SRR0618 | |
Packaging | Tape & Reel (TR) | |
Part Status | Last Time Buy | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 4.7µH | |
Tolerance | ±20% | |
Current Rating | 1.05A | |
Current - Saturation | 1.45A | |
Shielding | Shielded | |
DC Resistance (DCR) | 100 mOhm Max | |
Q @ Freq | 30 @ 100kHz | |
Frequency - Self Resonant | 65MHz | |
Ratings | - | |
Operating Temperature | -40°C ~ 125°C | |
Frequency - Test | 100kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.197" L x 0.197" W (5.00mm x 5.00mm) | |
Height - Seated (Max) | 0.063" (1.60mm) | |
Standard Package | 900 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | SRR0618-4R7ML | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
SRR0618-4R7ML is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of SRR0618-4R7ML is new and unused, you can buy SRR0618-4R7ML Bourns Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for SRR0618-4R7ML.
